61 21 010 Removing and installing battery
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY .
Follow Instructions For Disconnecting And Connecting Battery .
Necessary preliminary tasks:
- Remove LUGGAGE COMPARTMENT TRIM ON SIDE PANEL ON RIGHT .
- Disconnect BATTERY NEGATIVE LEAD .

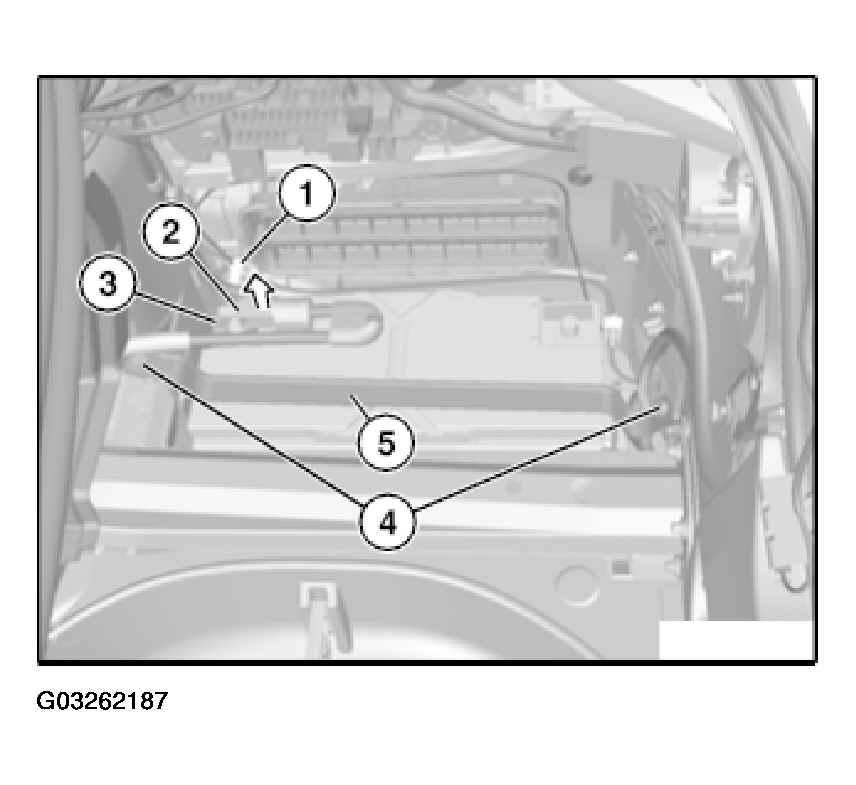

Disconnect plug connection (1) of IBS cable.
Release nut (3).
Tightening torque: 5 Nm
IMPORTANT:
Do not under any circumstances pull/lever safety battery terminal (2) off by force.
Detach safety battery terminal (2) towards top, lay to one side and secure.
Release nuts (4) and remove rollover protection (5).

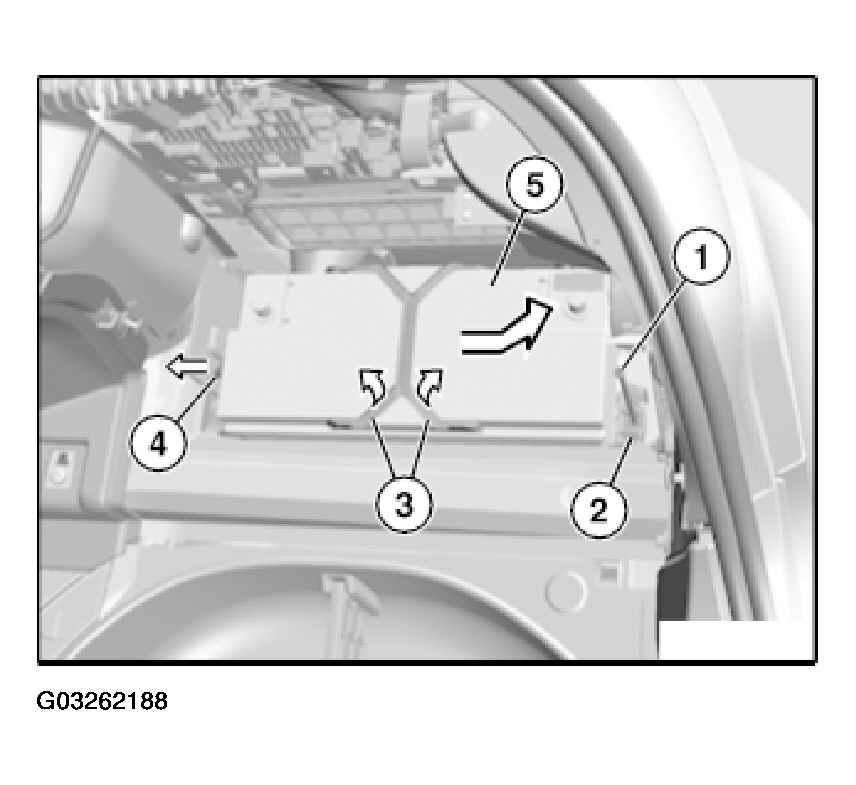

Release threaded pin (1) and remove holders (2).
Detach vent (4) in direction of arrow.
Fold both clips (3) open.
Pull battery (5) back from front fixture and remove towards top.
Installation:
Make sure battery (5) is correctly seated in front fixture.
