52 26... Removing and installing/replacing rear left or right head restraint mount (through-loading)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove padding for rear backrest. See 52 26 080 Removing And Installing/Replacing Backrest Frame For Left Rear Seat (Through-Loading System) .

Left head restraint mount:

Release screws, remove head restraint mount.

Tightening torque, see 52 24 2AZ in SEATS - TIGHTENING TORQUES - 525I & 530I (M54) .

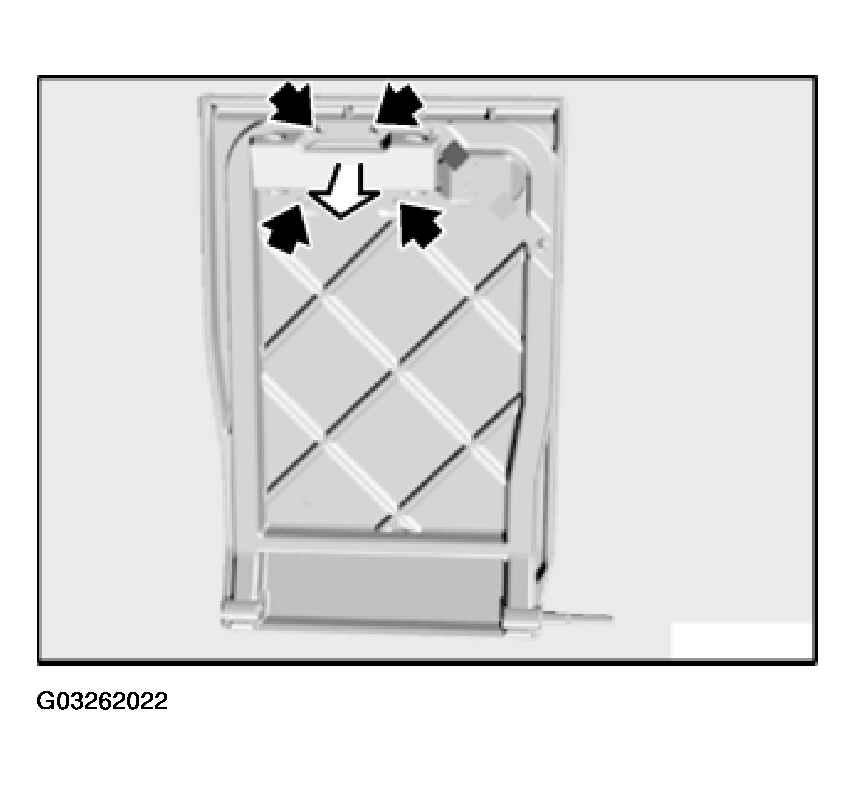

Fig 1: Removing Head Restraint Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Right head restraint mount:

Release screws, remove head restraint mount.

Tightening torque, see 52 24 2AZ in SEATS - TIGHTENING TORQUES - 525I & 530I (M54) .

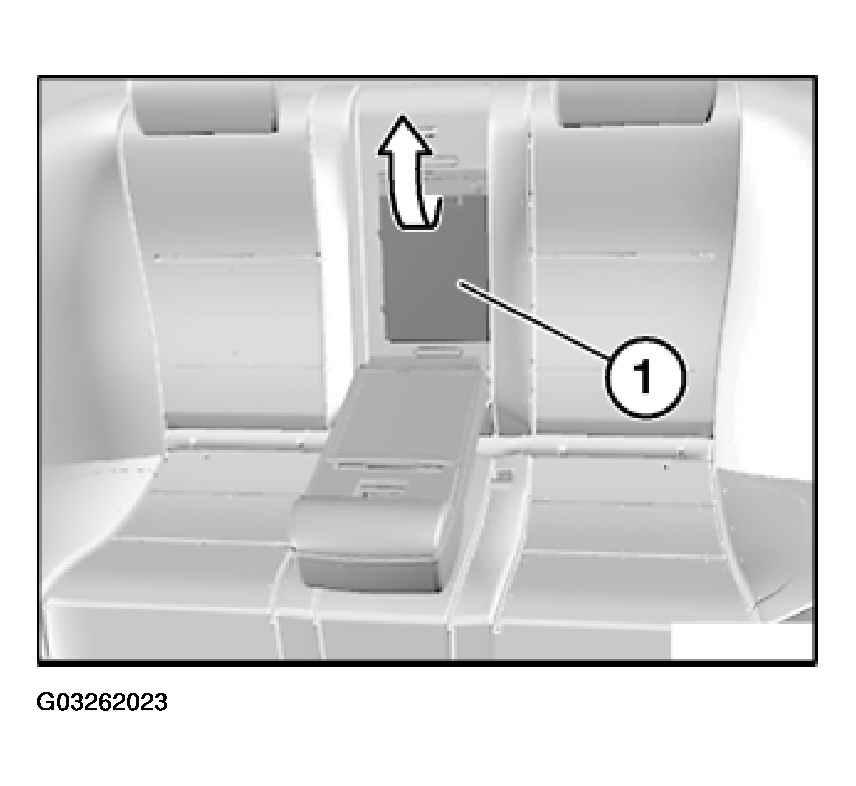

Fig 2: Identifying Right Head Restraint Mount

Courtesy of BMW OF NORTH AMERICA, INC.
