52 26 080 Removing and installing/replacing backrest frame for left rear seat (through-loading system)
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove center armrest. See 52 26 030 Removing And Installing/Replacing Armrest For Rear Seat Backrest (Through-Loading System) .
- Remove ski bag with frame and trim. See 52 26... Removing And Installing/Replacing Ski Bag (Through-Loading) And Frame .
- Remove backrest cover with padding. See 52 26 411 Replacing Backrest Cover For Rear Seat (Through-Loading System) On Left .
E61 only:
- Remove rear middle inertia reel unit.
Replacement only:

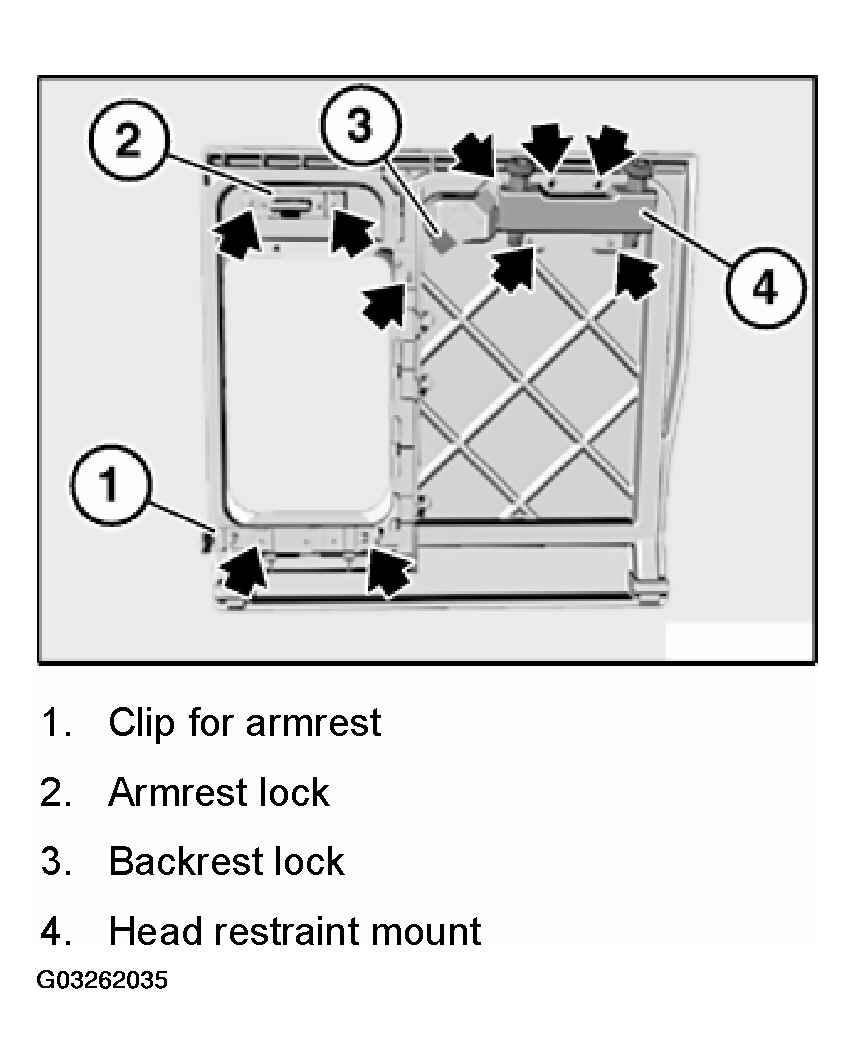

Release all screws and remove parts:
- Clip for armrest
- Armrest lock
- Backrest lock
- Head restraint mount
