52 26 015 Removing and installing/replacing left/right rear seat backrest (through-loading)
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove backrest side section. See 52 26 008 Removing And Installing/Replacing Left/Right Sides Of Backrest On Rear Seat Backrest (Through-Loading) .
- If necessary, remove rear seat (only with seat heating optional extra) 52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Semi-Electric)
- Unlock backrest (if necessary emergency actuator)

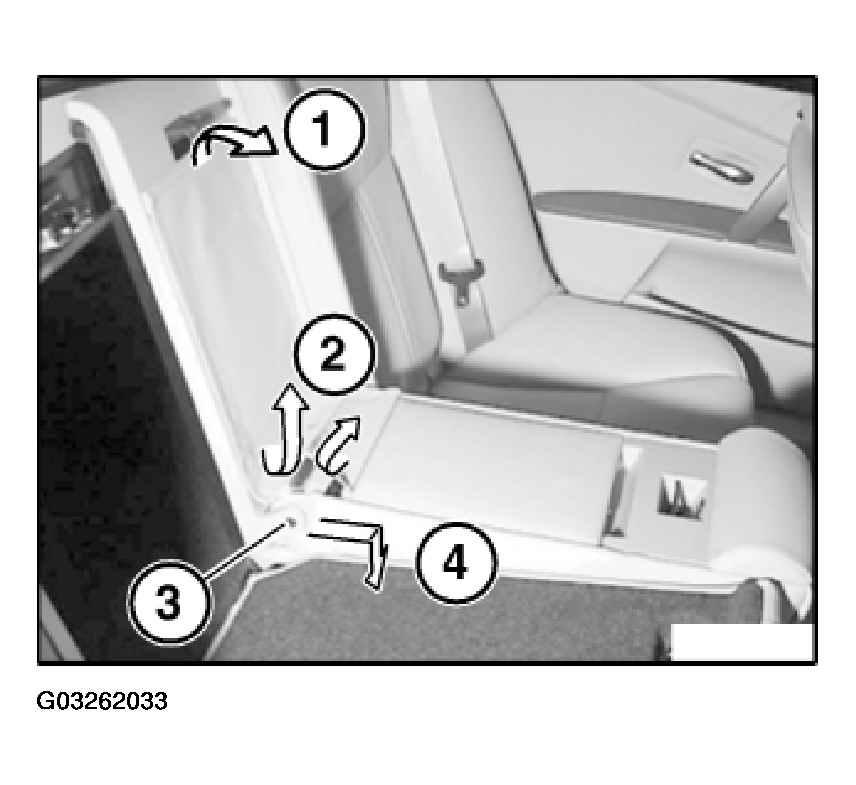

Left backrest:
- Release screw (1).
- With automatic center belt optional extra only:
Lay belt (2) around center armrest
- Fold backrest forwards slightly (3)
- Pull backrest forwards and outwards out of center mount (4)

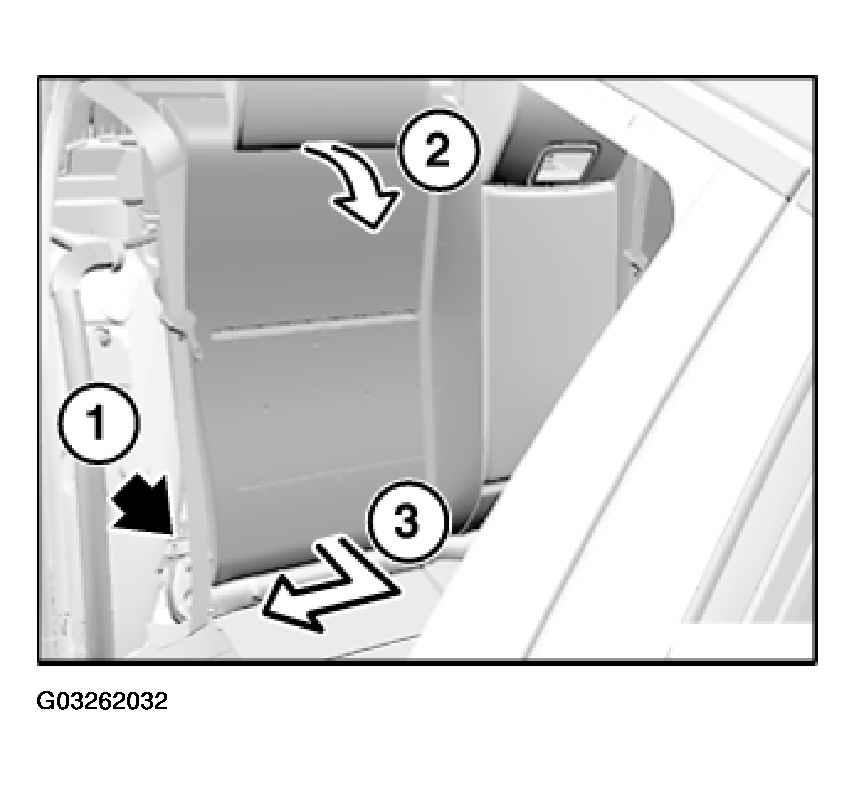

Right backrest:
- Release screw (1)
- Fold backrest forwards slightly (2)
- Pull backrest forwards and outwards out of center mount (3)
