52 26 008 Removing and installing/replacing left/right sides of backrest on rear seat backrest (through-loading)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

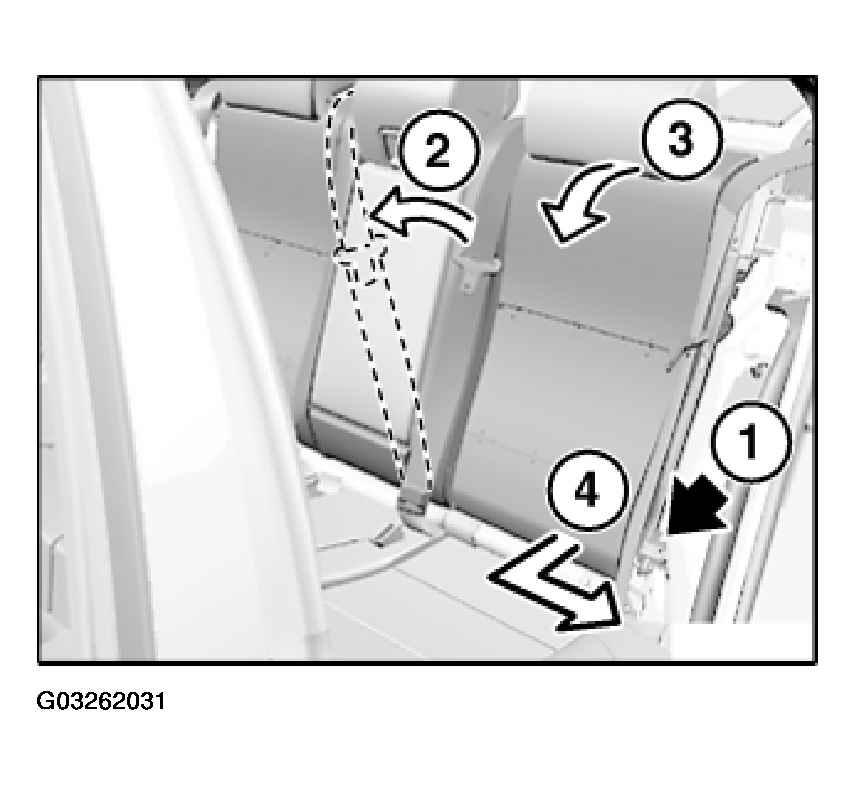

Pull seat belt to middle and place behind head restraint.

Pull top backrest side section (1) forwards (unclip) remove towards top (2).

Fig 1: Pulling Top Backrest Side Section Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

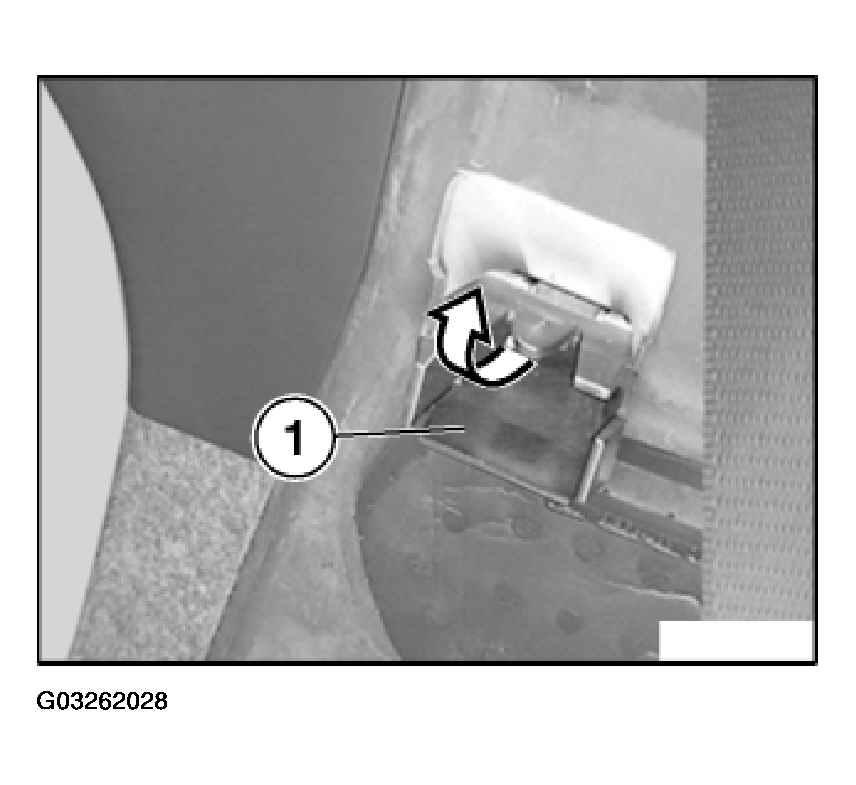

Pull clip (1) forwards out of sheet metal.

Fig 2: Pulling Clip Forwards Out Of Sheet Metal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

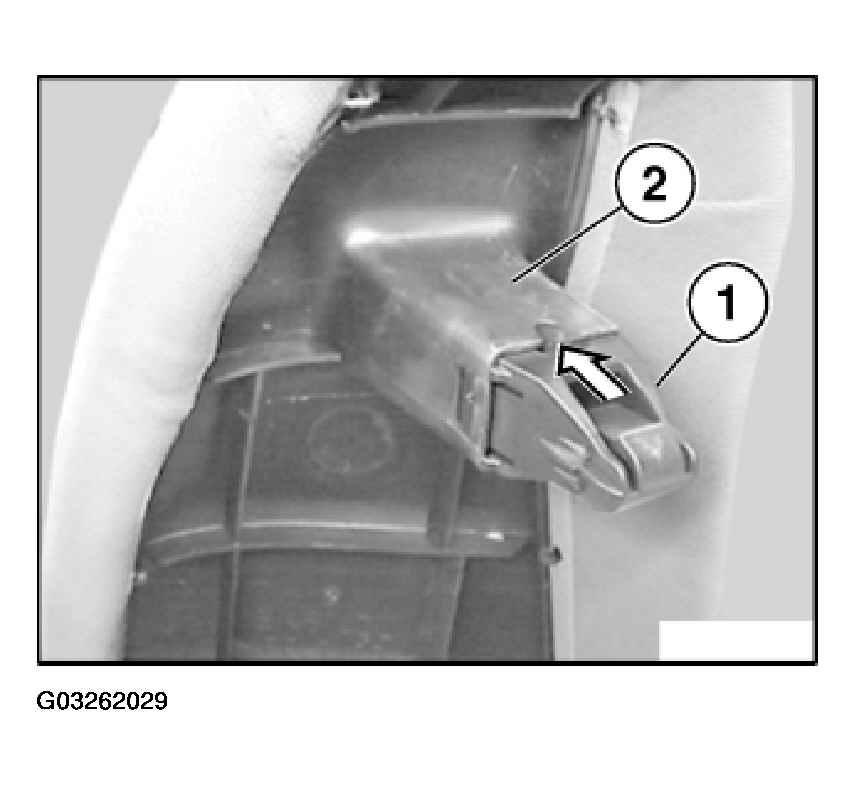

Check clip (1) and mount (2) for damage.

Slide clip (1) into mount (2) of backrest side section.

Fig 3: Sliding Clip Into Mount Of Backrest Side Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

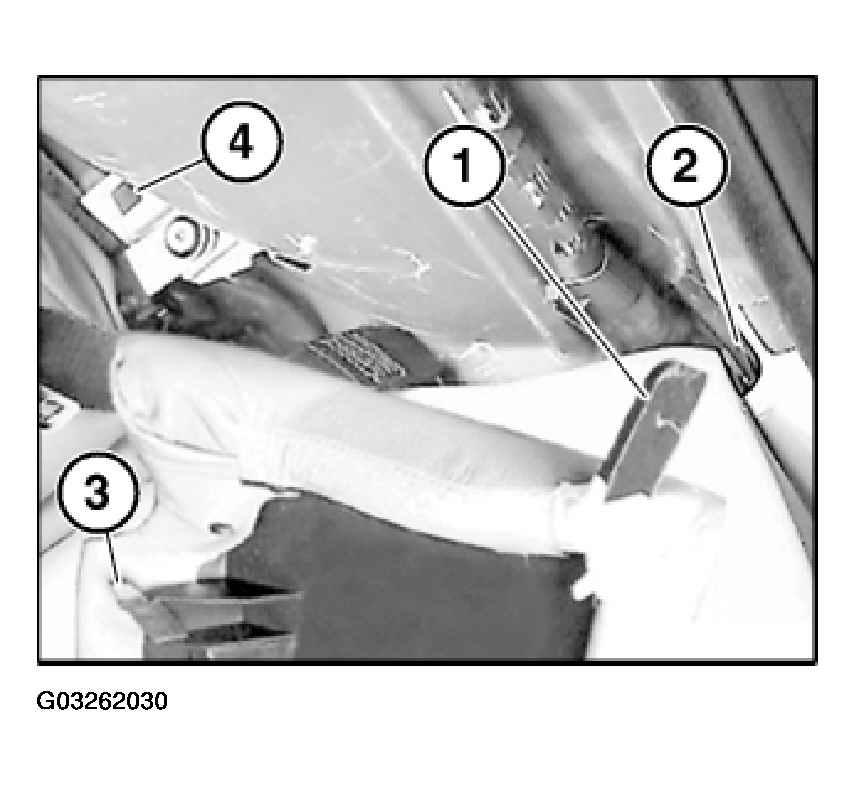

First feed guides (1 and 3) on backrest side section into mounts (2 and 4) of body.
Then press backrest side section downwards so that guides are correctly seated in mounts.
To finish, clip in backrest side section at top.

Fig 4: Identifying Guides On Backrest Side Section Into Mounts Of Body

Courtesy of BMW OF NORTH AMERICA, INC.
