52 14... Removing and installing/replacing guide for front left or right head restraint

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear panel on front seat backrest. See 52 14 198 Removing And Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest (Normal/Electric) .

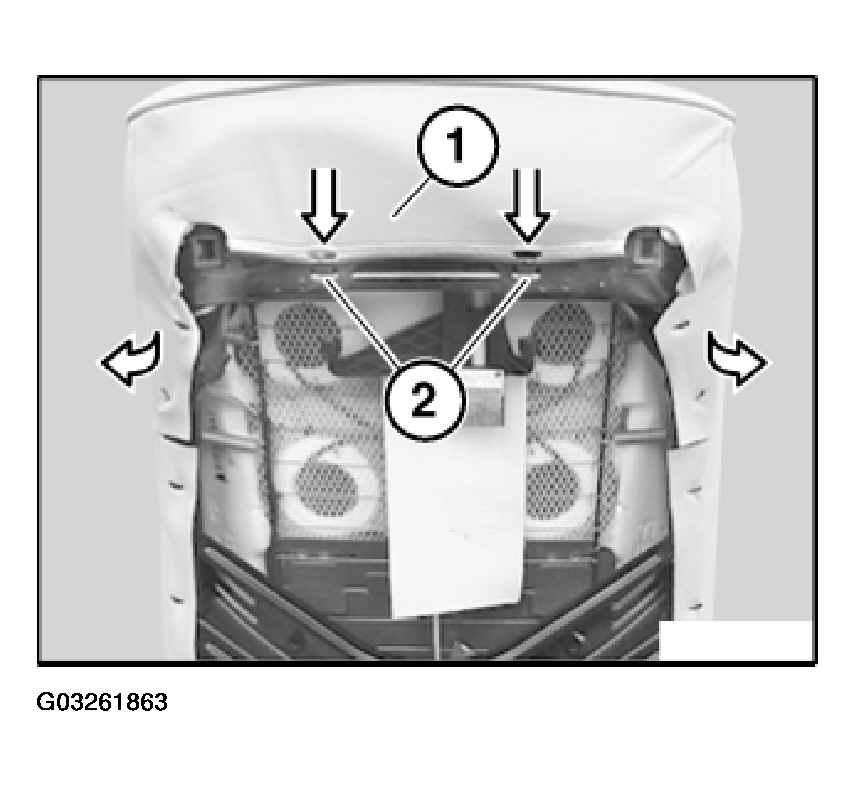

Pull backrest cover (1) in direction of arrow over metal lugs (2) and detach.

If necessary, detach backrest cover on both sides from backrest frame.

Fig 1: Detaching Backrest Cover On Both Sides From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

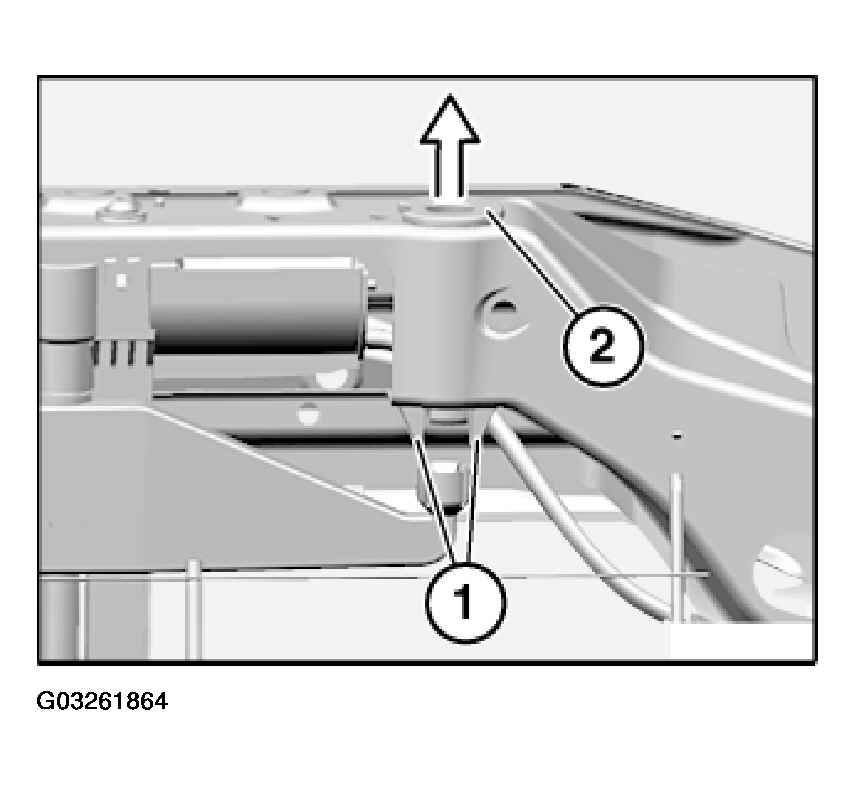

Unlock catches (1) and remove guide (2) towards top.

Fig 2: Removing Guide Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.
