52 14 198 Removing and installing / replacing rear panel on left or right front seat backrest (normal / electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Operation is shown on the left seat. When removing from the right seat, transpose the pull and striking sides accordingly.

Grip between rear panel and backrest cover on door side until clip can be felt (do not pull).
At same time, firmly punch towards middle of seat on inner side (tunnel side) at top.
Upper retainers spring out of seat guide.
Pull rear panel up out of lower guides.

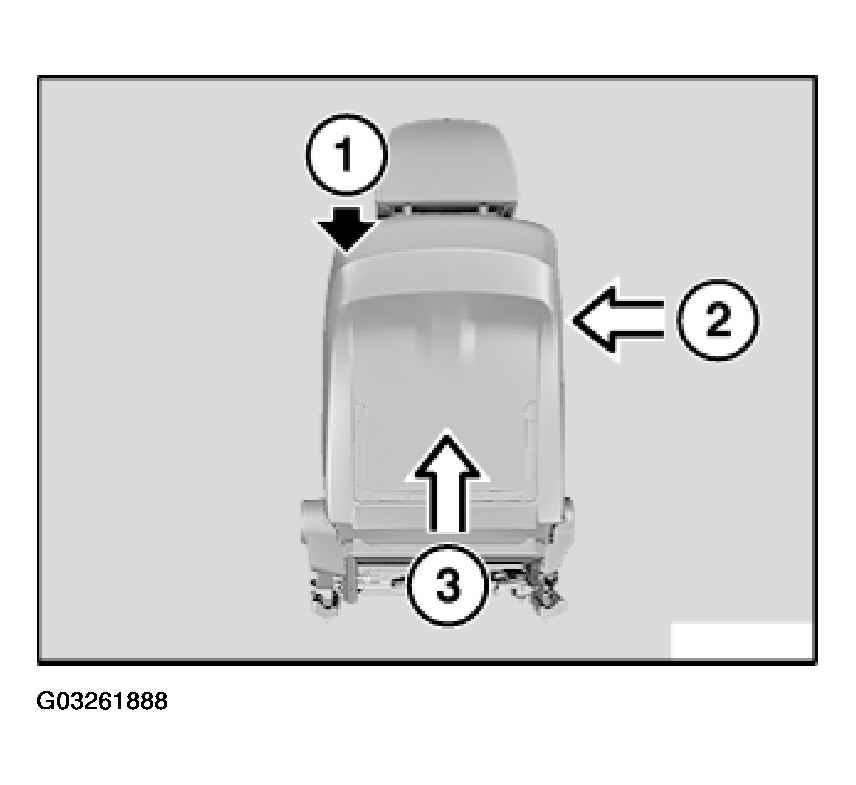

Fig 1: Identifying Grip Between Rear Panel And Backrest Cover On Door Side

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rear panel and clips must not be damaged.

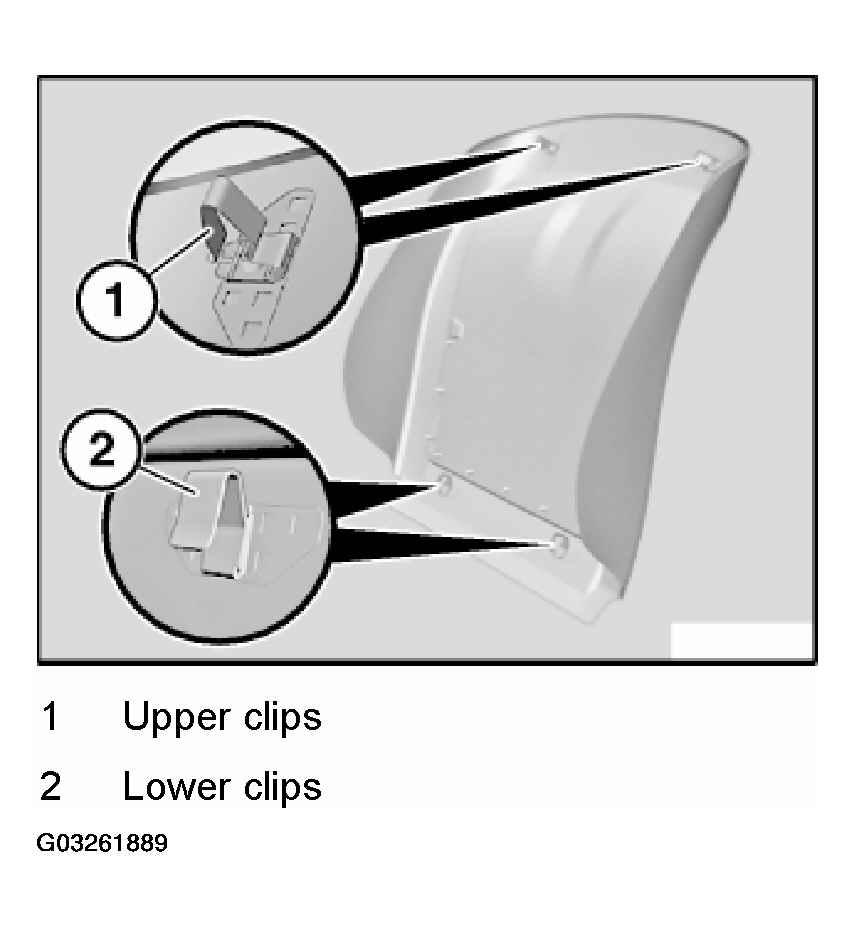

Fig 2: Identifying Upper Clips And Lower Clips

Courtesy of BMW OF NORTH AMERICA, INC.
