51 24 145 Removing and installing/replacing button for rear lid actuation

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR REAR LID .

If necessary, disconnect plug connection in rear lid.

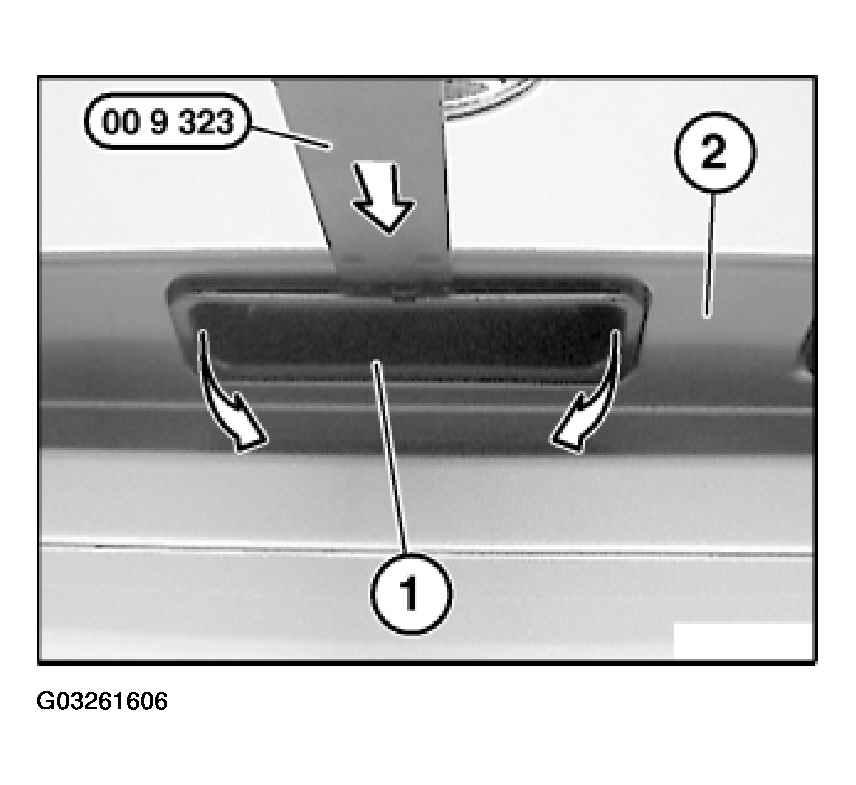

Move special tool 00 9 323 under front edge of button (1) and lever out button (1).

Pull button (1) out of rear lid (2).

Fig 1: Removing Button Of Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

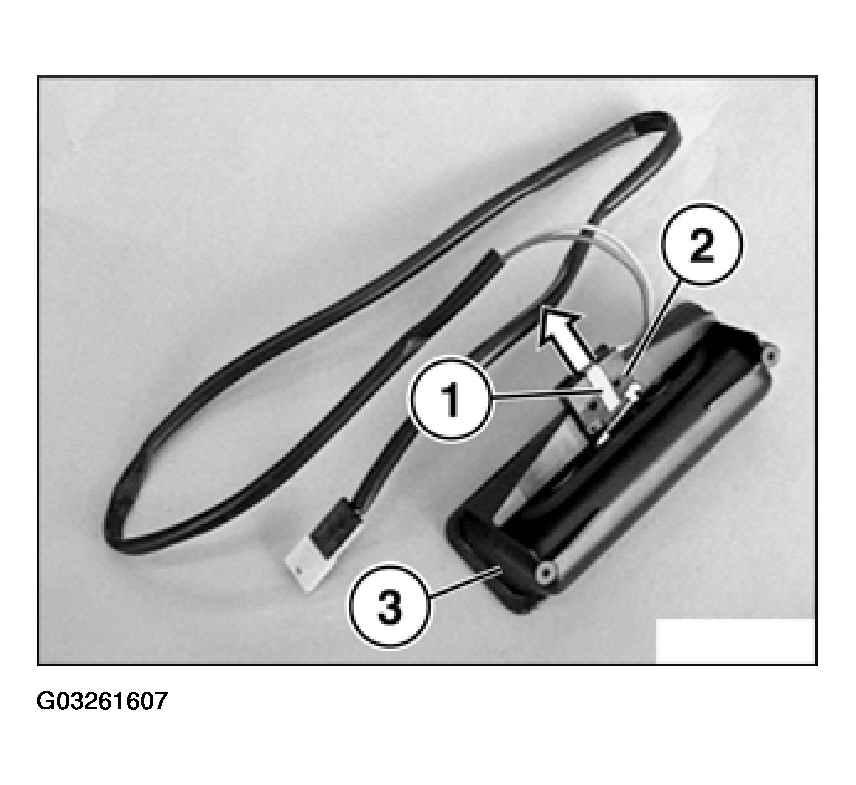

Pull off clip (1) and remove microswitch (2). Pull off seal (3).

Installation:

Seal (3) must be undamaged and button must be correctly snapped into place.

Perform function check with trunk lid open.

Fig 2: Checking Trunk Lid Open

Courtesy of BMW OF NORTH AMERICA, INC.
