00 9 310 Assembly wedges (set in plastic case)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For straightening and assembly jobs on vehicle bodies, e.g. fitting trim panels, removing window weatherstrips, repairing small-scale dents, removing residual adhesive materials, measuring gap widths, levering out trim panel parts

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63 E64, E65, E66, E67, E68, E70, E81, E82, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, R55, R56, RR1, RR2

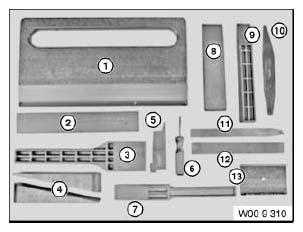

Fig 1: Identifying Assembly Wedges (Set In Plastic Case)

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 25 05 230

Order number: 00 9 310

Assembly wedges (set in plastic case)

Consisting of:

1 = 00 9 311 Trim remover

2 = 00 9 312 Striking wedge, square

3 = 00 9 313 Striking wedge, large

4 = 00 9 314 Adjusting wedges (2 x)

5 = 00 9 315 Gap wedge

6 = 00 9 316 Sealing lip wedge

7 = 00 9 317 Trim panel wedge

8 = 00 9 318 Universal wedge

9 = 00 9 319 Striking wedge, small

10 = 00 9 321 Fishbone

11 = 00 9 322 Plastic wedge

12 = 00 9 323 Cleaning wedge (scraper)

13 = 00 9 324 Trim remover (metal plate)

Note: For removing stem trims from E60

14 = 00 9 329 Case with inlay for assembly wedges

In conjunction with: 009310
