51 24 130 Removing and installing/replacing striker for rear lid lock

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM ON REAR APRON .

Release screws (1).

Remove striker for rear lid lock (2) (lower section of rear lid lock).

Installation:

Adjust REAR LID LOCK .

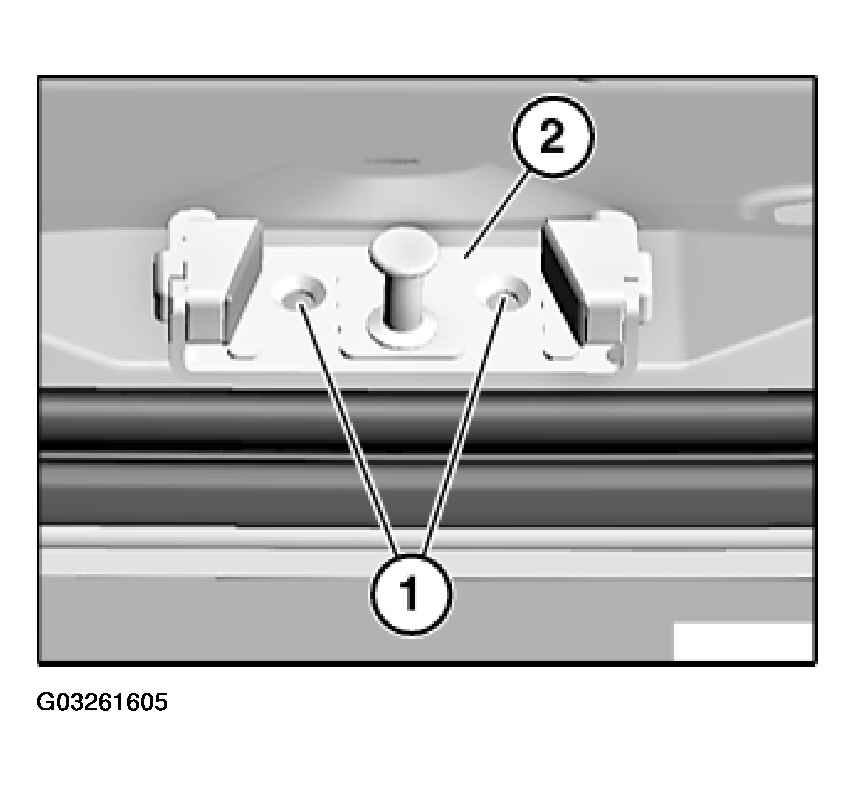

Fig 1: Removing Striker For Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Striker and rear lid lock must not be greased.
