51 24 004 Adjusting rear lid lock (lower section of rear lid lock)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Rear lid must be correctly adjusted to fit before adjustment of rear lid lock.

ADJUST REAR LID if necessary.

For ideal adjustment, refer to BODY GAP DIMENSIONS .

Screw in detent buffers for rear lid on left/right completely.

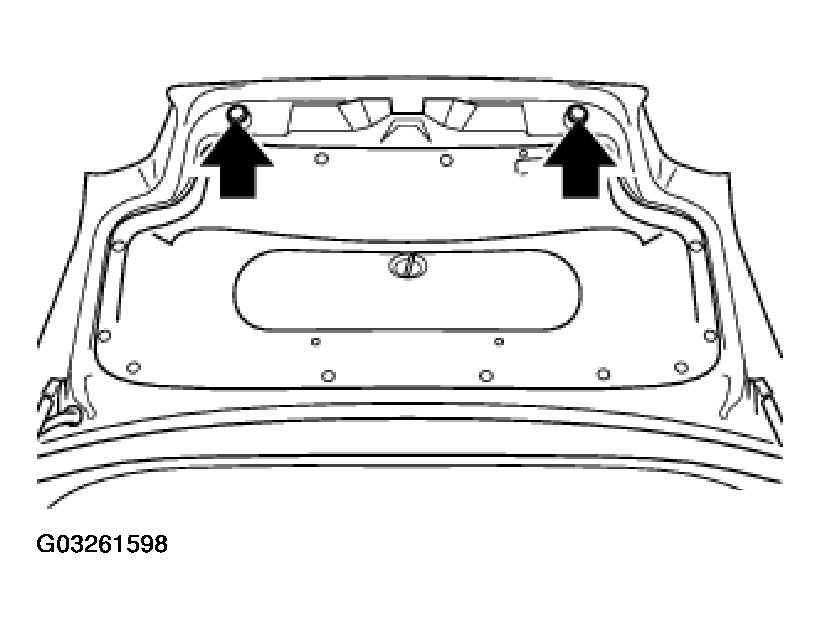

Fig 1: Adjusting Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Check fulcrum pads on lower section of rear lid lock for damage and replace if necessary.

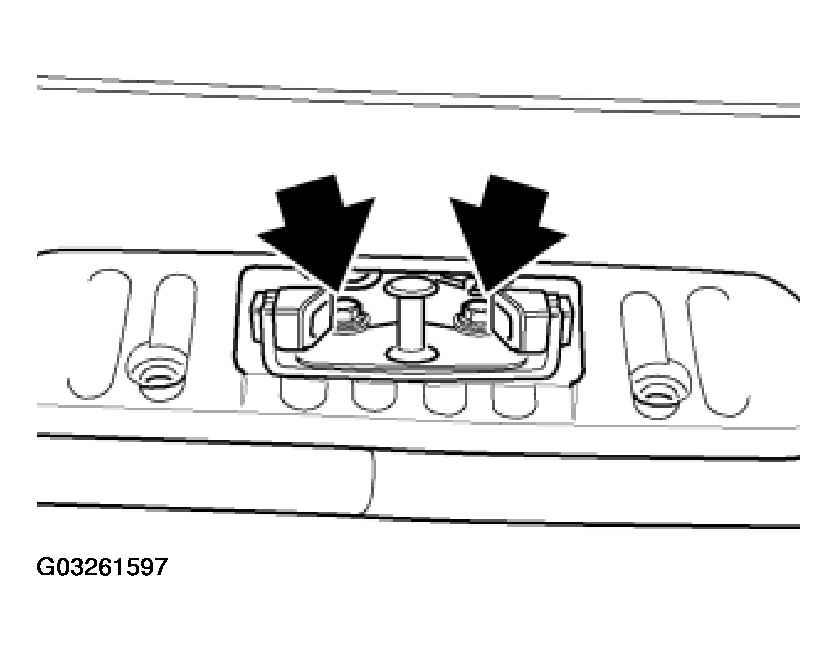

Fig 2: Checking Fulcrum Pads On Lower Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Version with cover caps on rear apron trim:

If necessary, remove cover caps.

Slacken screws in lower section of rear lid lock until it is just able to move and centers itself.

The lower section of the rear lid lock must not scrape against the rear lid lock.

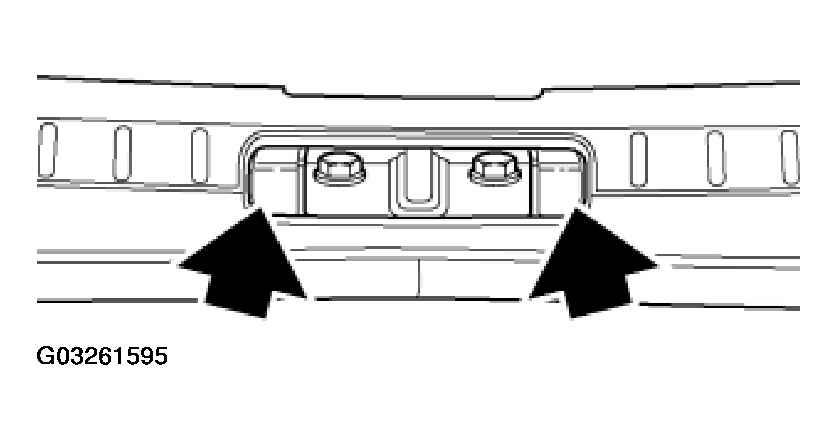

Fig 3: Removing Cover Caps

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Adjusting lower section of rear lid lock:

Close trunk lid.

This enables the lower section of the rear lid lock to adjust itself correctly.

Open rear lid.

Tighten down screws on lower section of rear lid lock.

Tightening torque: see 6AZ in 51 24 REAR LID LOCKS

Check adjustment of rear lid and rear lid lock, repeating adjustment if necessary.

Fig 4: Checking Rear Lid And Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew detent buffer until closed rear lid abuts against left/right detent buffers.

IMPORTANT:

The rear lid must not be higher than the side panels, otherwise there is preload on height adjustment!

Fig 5: Identifying Rear Lid Adjustment Locations

Courtesy of BMW OF NORTH AMERICA, INC.
