51 24 065 Removing and installing / replacing Bowden cable for manual rear lid unlocking

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEAT
Remove UPPER SECTION OF REAR LID LOCK
Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

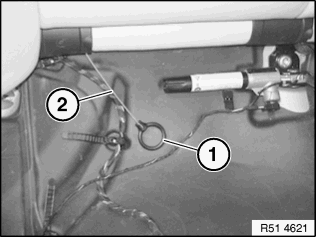

Detach pull eyelet (1) from Bowden cable (2).

Fig 1: Identifying Bowden Cable And Eyelet

Courtesy of BMW OF NORTH AMERICA, INC.

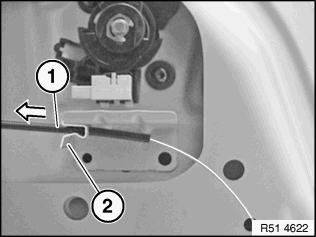

Detach Bowden cable (1) with holder (2) in direction of arrow from holder on rear lid.

Fig 2: Detaching Bowden Cable With Holder

Courtesy of BMW OF NORTH AMERICA, INC.

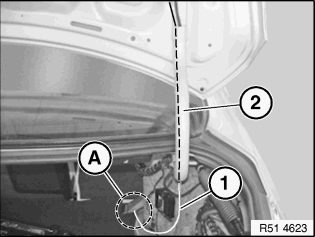

Feed Bowden cable (1) in area (A) out of passenger compartment.

Feed Bowden cable (1) upwards out of hinge (2).

Fig 3: Feeding Bowden Cable Out Of Passenger Compartment And Upwards Out Of Hinge

Courtesy of BMW OF NORTH AMERICA, INC.
