51 24 100 Removing and installing/replacing rear lid lock (upper section)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR REAR LID .

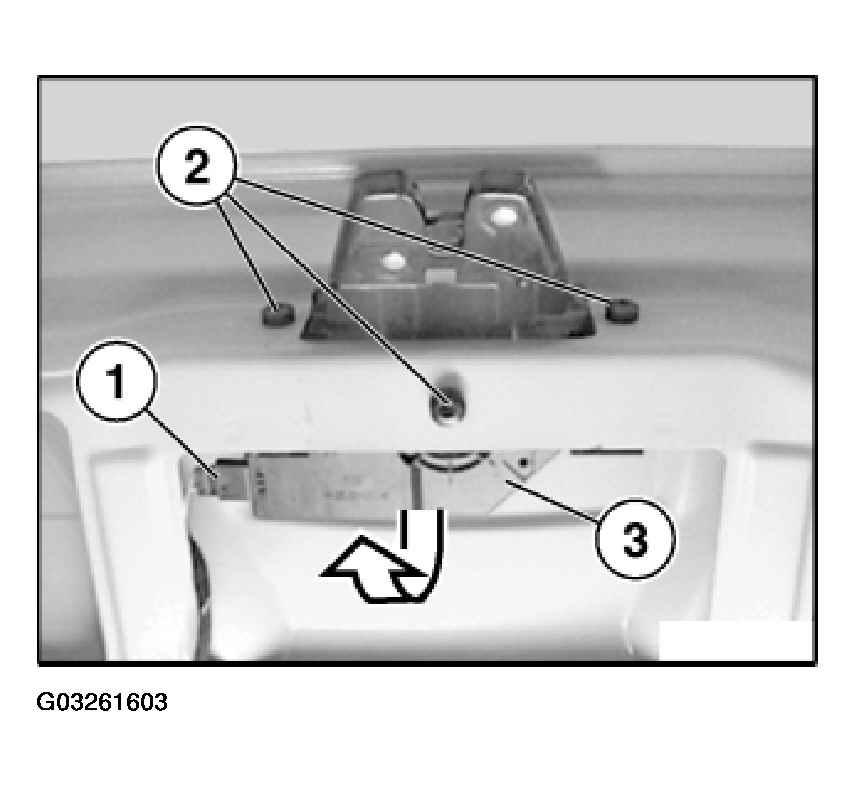

Release screws (2) and feed out upper section of rear lid lock (3).

Disconnect plug connection (1).

Installation:

Use self-tapping screws when replacing upper section of rear lid lock (3).

Tightening torque: see 5AZ in 51 24 REAR LID LOCKS

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

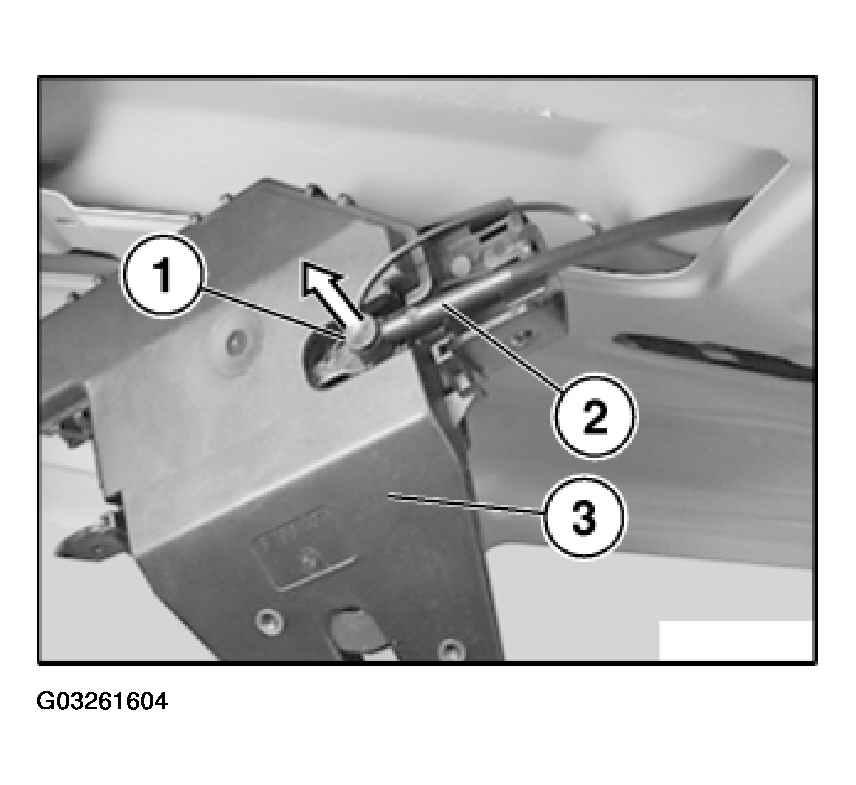

Remove lock (1).

Lever out actuating rod (2) and remove upper section of rear lid lock (3).

Installation:

Make sure lock (1) is correctly seated.

Fig 2: Removing Upper Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.
