61 61 101 Removing and installing both windshield wiper arms

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage wiper arms when removing (risk of breakage).

Installation:

Adjust the position of the relevant wiper arm in the wiper rest position.

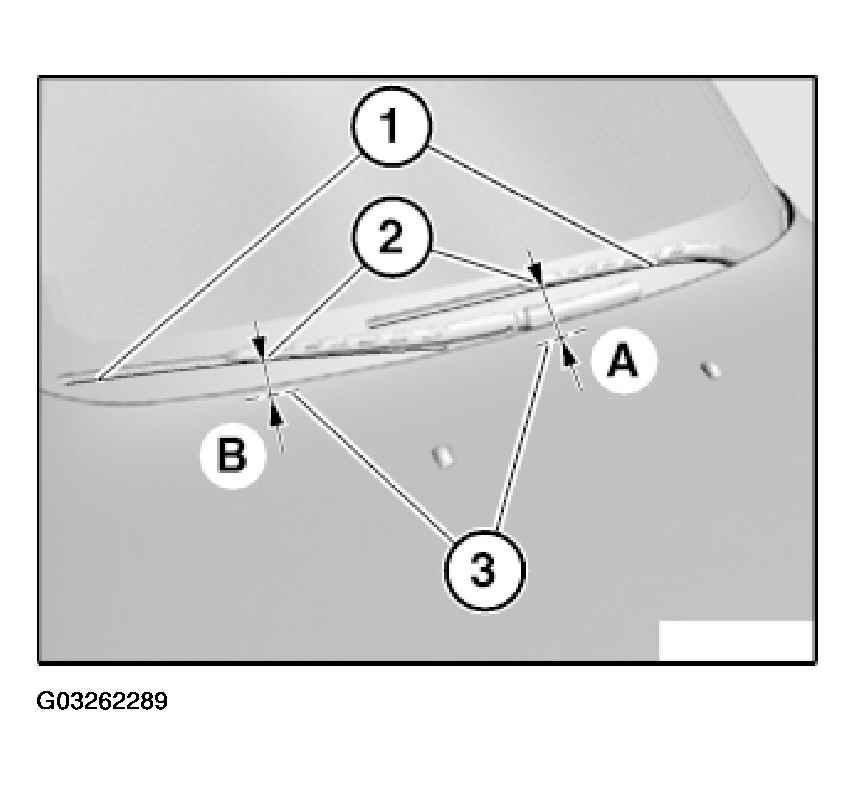

Measure distance between wiper lip (1) and top edge of cowl panel cover (3) at mounting point (2) of wiper blade. Adjustment measurements:

A: 87 +/- 3 mm
B: 69 +/- 3 mm

Fig 1: Measuring Distance Between Wiper Lip And Top Edge Of Cowl Panel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Removing left wiper arm:

Unclip wiper arm cap (1) and remove in direction of arrow.

Fig 2: Removing Wiper Arm Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

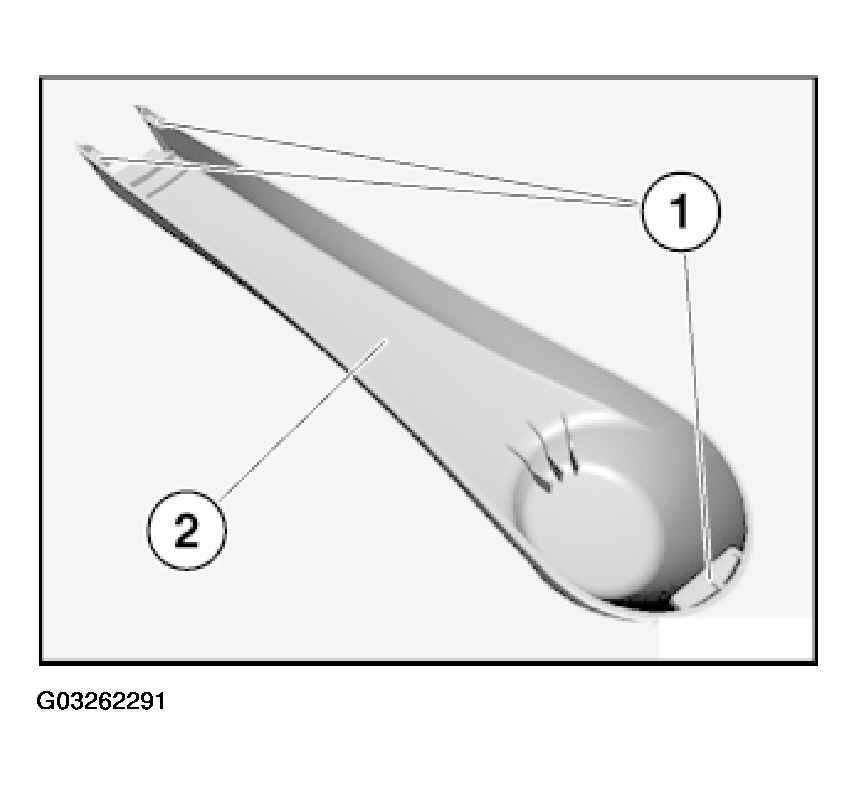

Catches (1) of wiper arm cap (2) must not be damaged.

Make sure wiper arm cap (2) is correctly seated.

Fig 3: Installing Wiper Arm Cap

Courtesy of BMW OF NORTH AMERICA, INC.

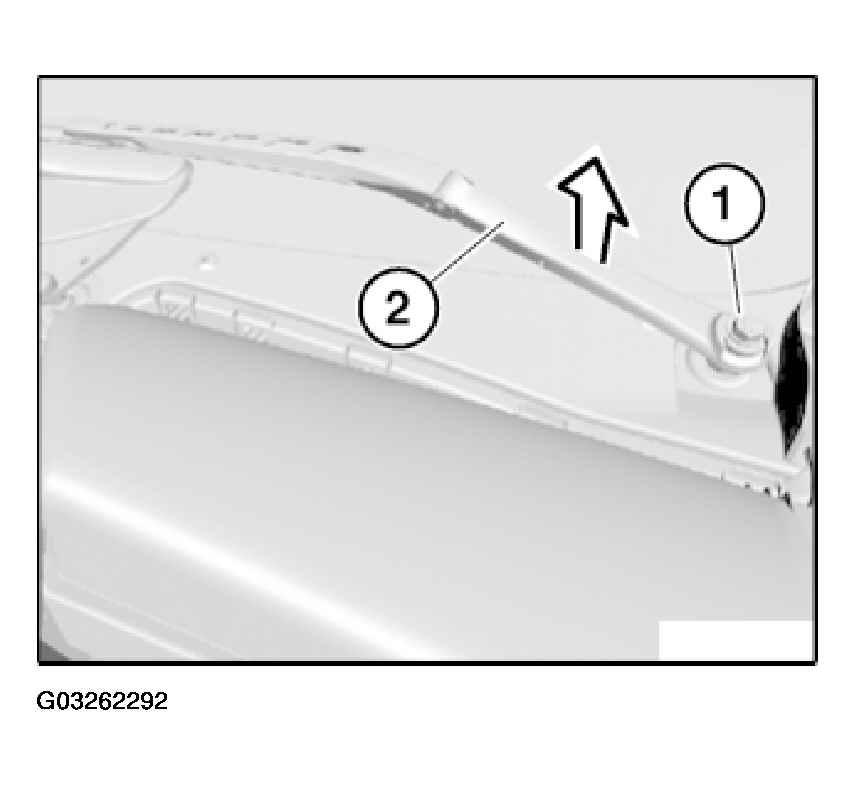

Unscrew nut (1).

Installation:

Tightening torque: 30 Nm or 35 Nm

NOTE: For torque, see inscription on wiper arm. Due to risk of releasing: check TT after approx. 50 mins. settling time.

IMPORTANT: Observe tightening specification (settling time) without fail (risk of detaching).

Remove wiper arm (2) in direction of arrow.

Fig 4: Removing Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

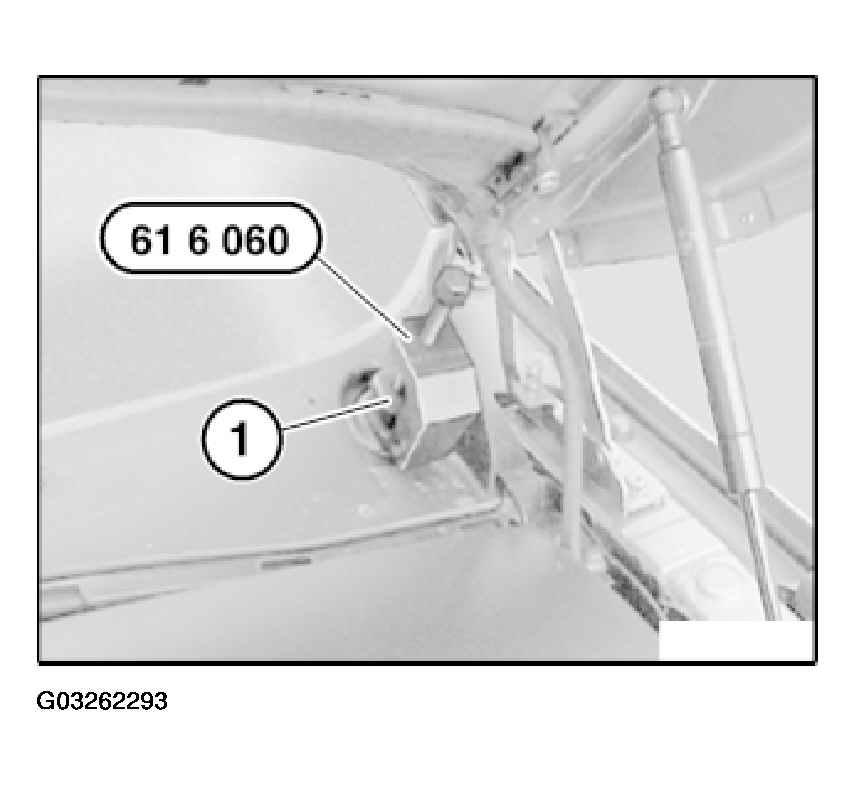

Pull off adjusting disk (1) with special tool 61 6 060 .

Installation:

Replace adjusting disk (1).

Mount adjusting disk (1) together with wiper arm on shaft.

CHECK/ADJUST contact angle of wiper arms to windshield.

Removing right wiper arm:

Fig 5: Pulling Off Adjusting Disk

Courtesy of BMW OF NORTH AMERICA, INC.

Remove caps (1).

Fig 6: Removing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

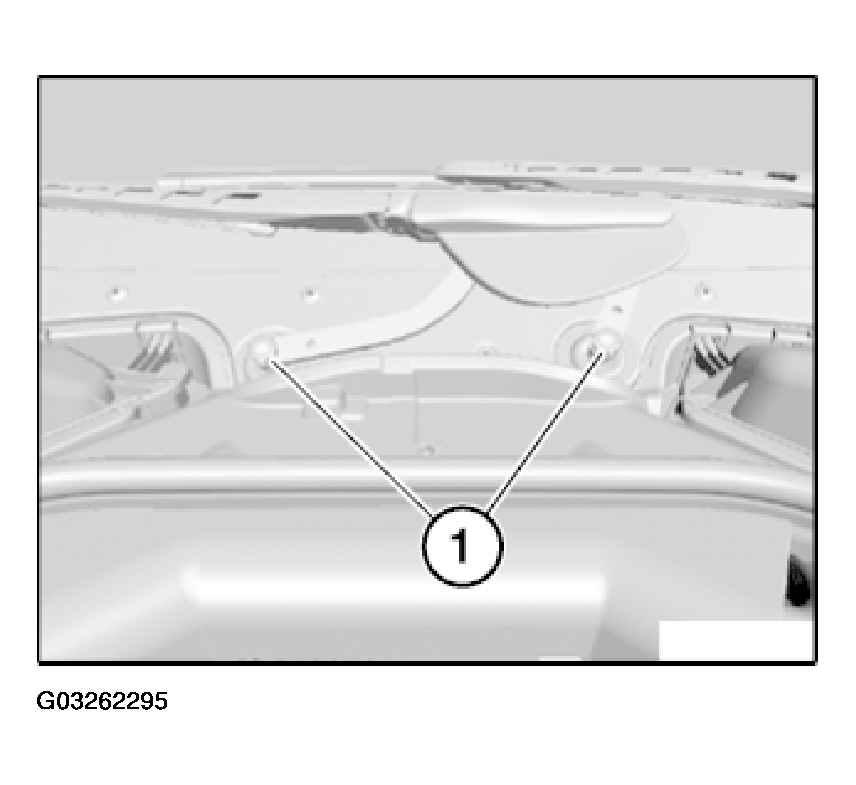

Unscrew nuts (1).

Installation:

Wiper arm with torque label:
- (2xM8) Tightening torque: see 13AZ in 61 61 WINDSHIELD WIPERS
Wiper arm without torque label:
- (1xM8, 1xM10) Tightening torque: 30 Nm or 35 Nm

IMPORTANT: Observe tightening specification (settling time) without fail (risk of detaching).

Fig 7: Removing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

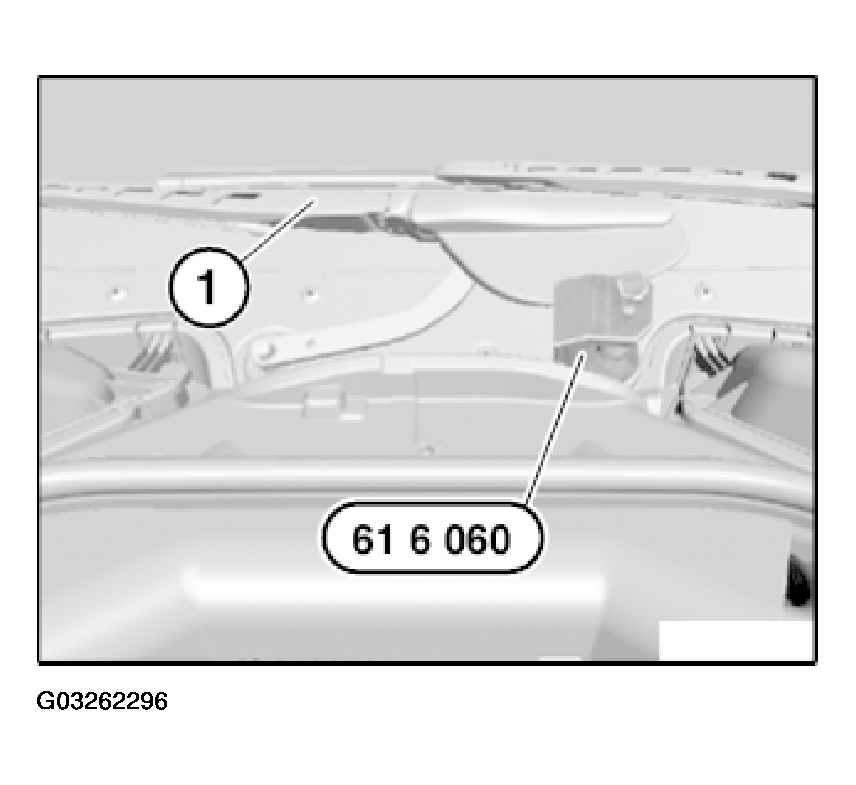

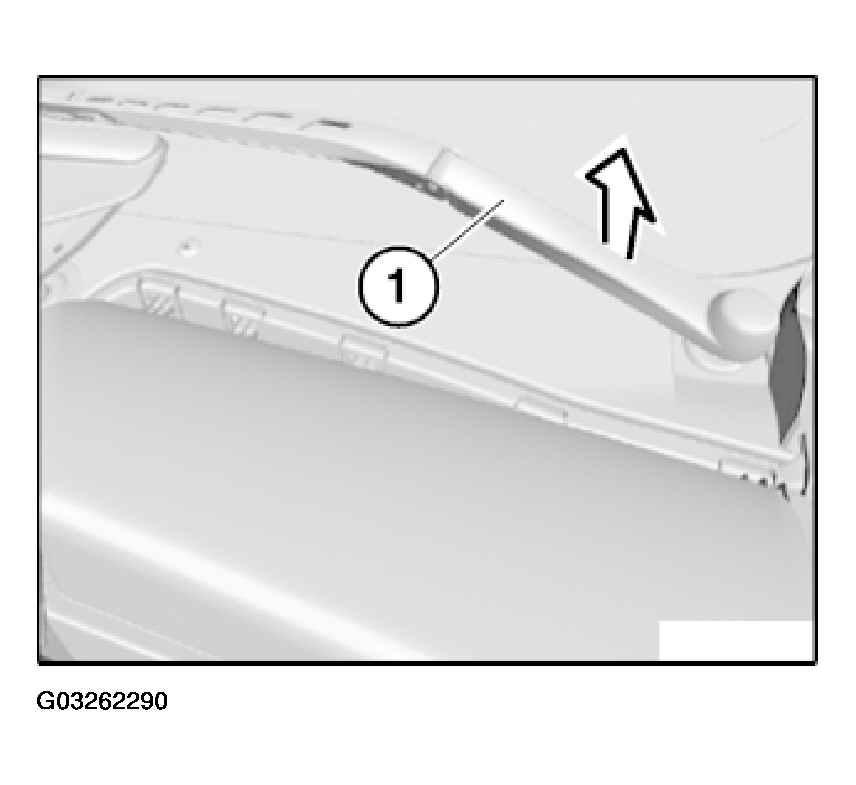

Detach wiper arm (1) as illustrated with special tool 61 6 060 . Installation:

CHECK/ADJUST contact angle of wiper arms to windshield.

Fig 8: Removing Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.
