51 45 370 Removing and installing (replacing) left decorative strip on instrument panel
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove LIGHT OPERATOR UNIT .

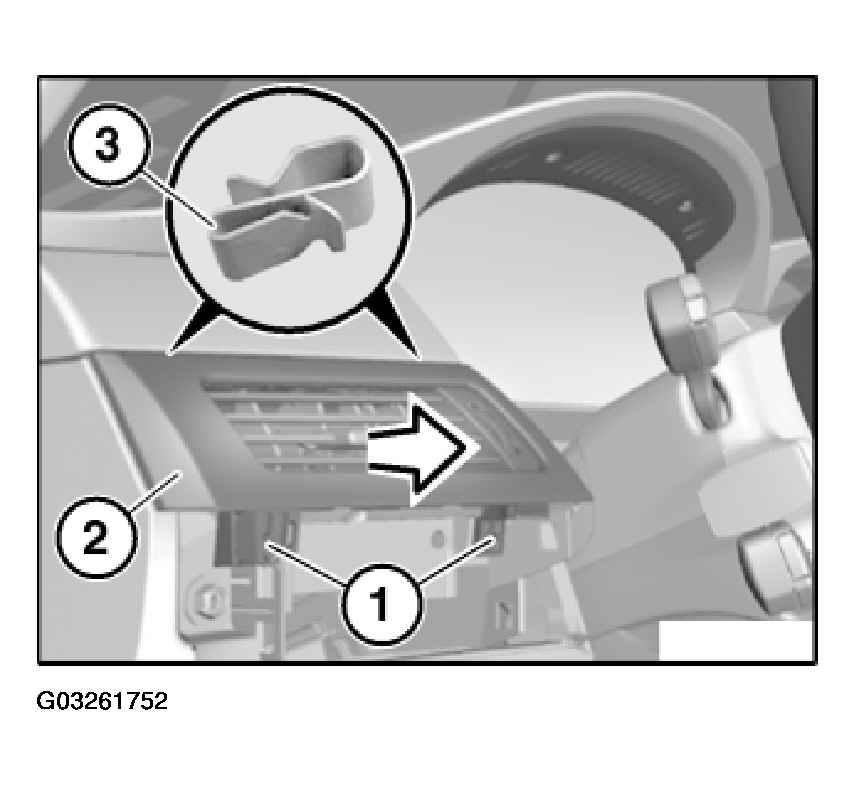

Release screws (1).
Unclip left decorative strip on instrument panel complete with left fresh-air grill (2) at top and remove in direction of arrow.
Installation:
Make sure clips (3) are correctly seated on mountings of left fresh-air grill (2).
Replacement :

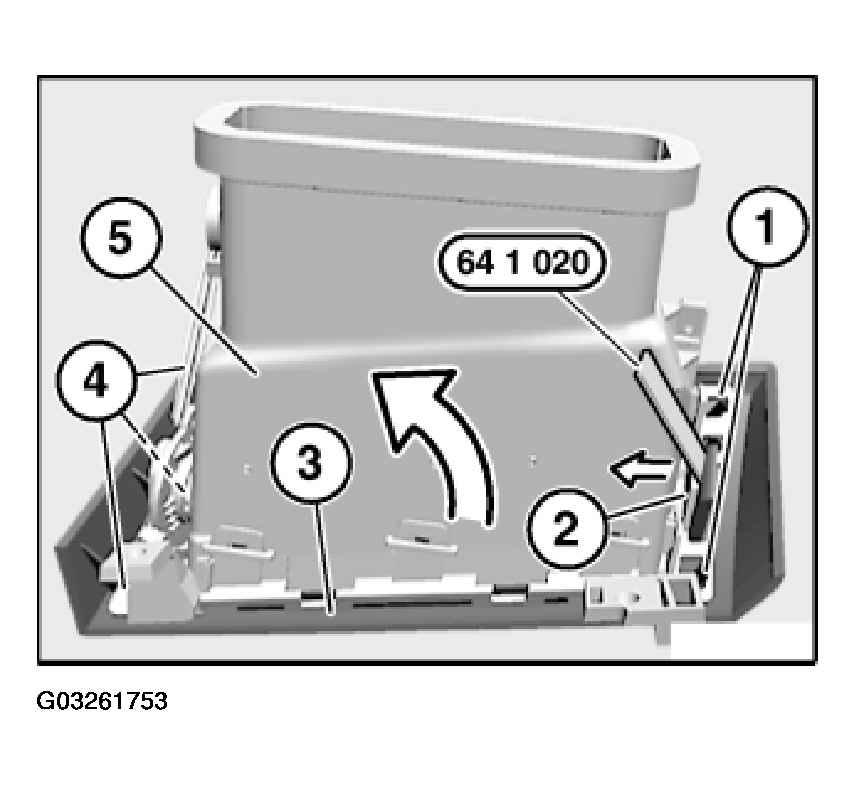

Release lock (2) with special tool 64 1 020 .
Unclip left fresh-air grill (5) in direction of arrow over retaining lugs (1) and remove from left decorative strip on instrument panel (3).
Installation:
Make sure left fresh-air grill (5) is correctly seated in mountings (4) of left decorative strip on instrument panel (3).
Make sure retaining lugs (1) and lock (2) of left decorative strip on instrument panel (3) are correctly seated.
