51 21... Removing weather strip with special tool 00 9 324 at front or rear

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

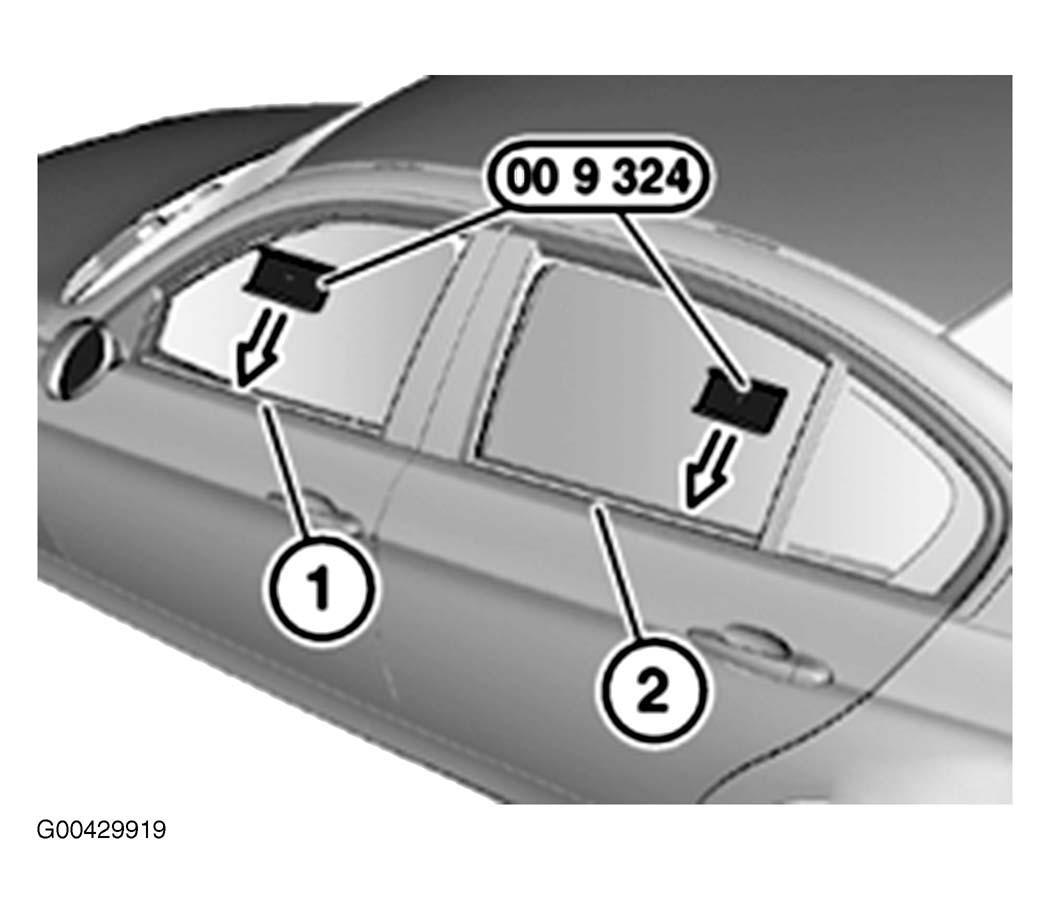

Open complete door window glass. Front door: Insert special tool 00 9 324 (panel wedge) at front (at A-pillar) in window cavity (1) (letters TOP pointing upwards).

Rear door: Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (letters TOP pointing upwards).

Fig 1: Inserting Special Tool In Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, picture shows inner door panel and door window glass removed.

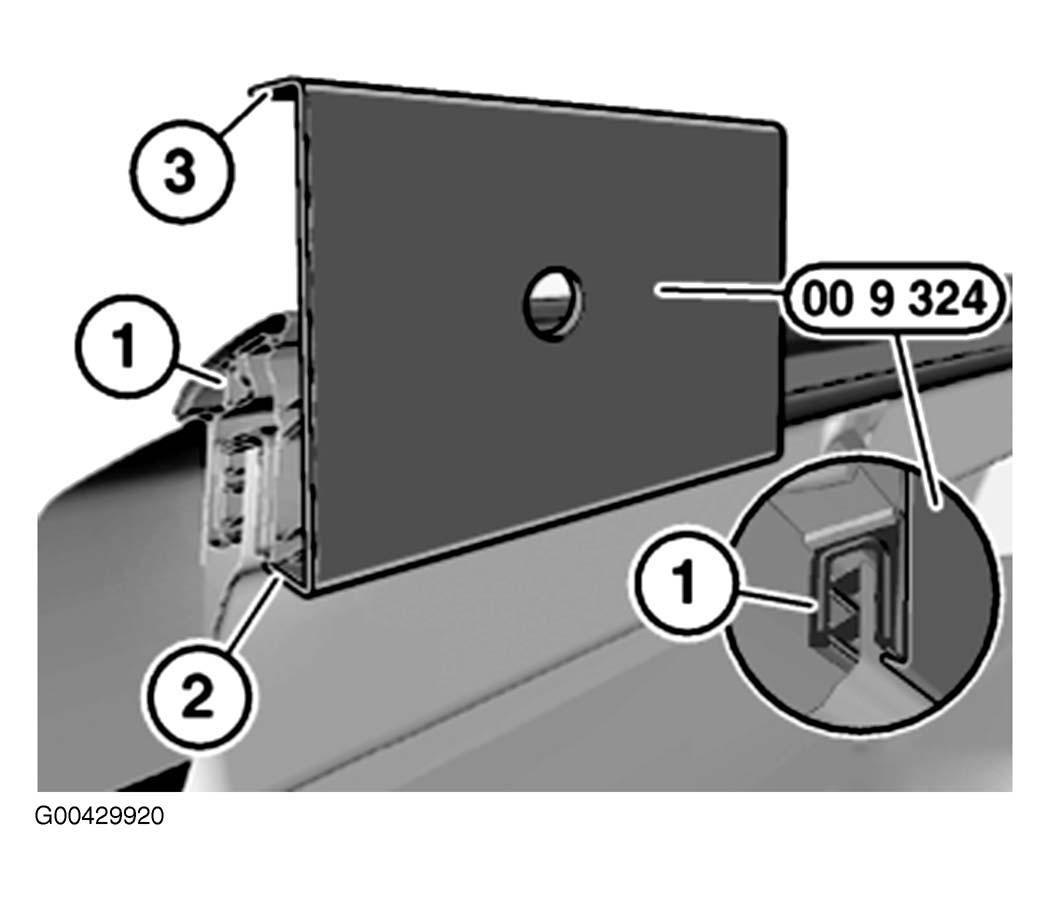

Special tool 00 9 324 must be correctly guided under window cavity cover strip (1). 2 Short leg, bottom 3 Long leg, top (TOP)

Fig 2: Special Tool Must Be Correctly Guided Under Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Start at the front or rear, depending on the model.

IMPORTANT:

Risk of damage!

Raise window cavity cover strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

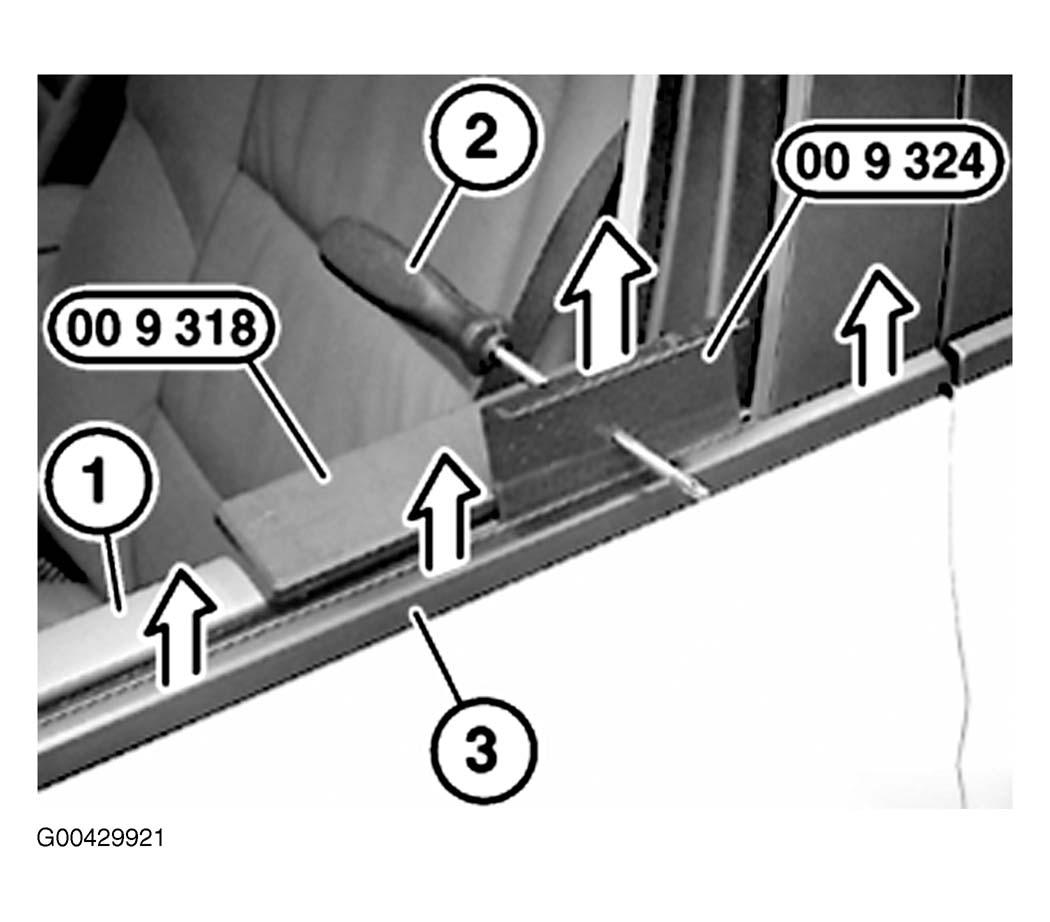

Position special tool 00 9 318 (wedge) on door trim panel (1).

Slide screwdriver (2) into special tool 00 9 324 (panel wedge) and lever window cavity cover strip (3) upwards no more than 5 mm.

Fig 3: Levering Out Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Guide special tools 00 9 324 and 00 9 318 towards front/rear and lever out window cavity cover strip (3) in the process.
