51 21 170 Removing and installing or replacing outer door handle from left or right front door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If replacing version with Comfort Access/CA:

In order to avoid Comfort Access malfunction, use only original BMW paints on the outside handle with electrically non-conducting primer.

New part* (from 09/2005) is provided with electrically non-conducting primer.

* Sourcing reference: BMW Parts Service

NOTE:

Installation is described separately from removal.

2-door Models:

Remove cover (1).

Only remove cover (2) to release the OUTER DOOR HANDLE COVER .

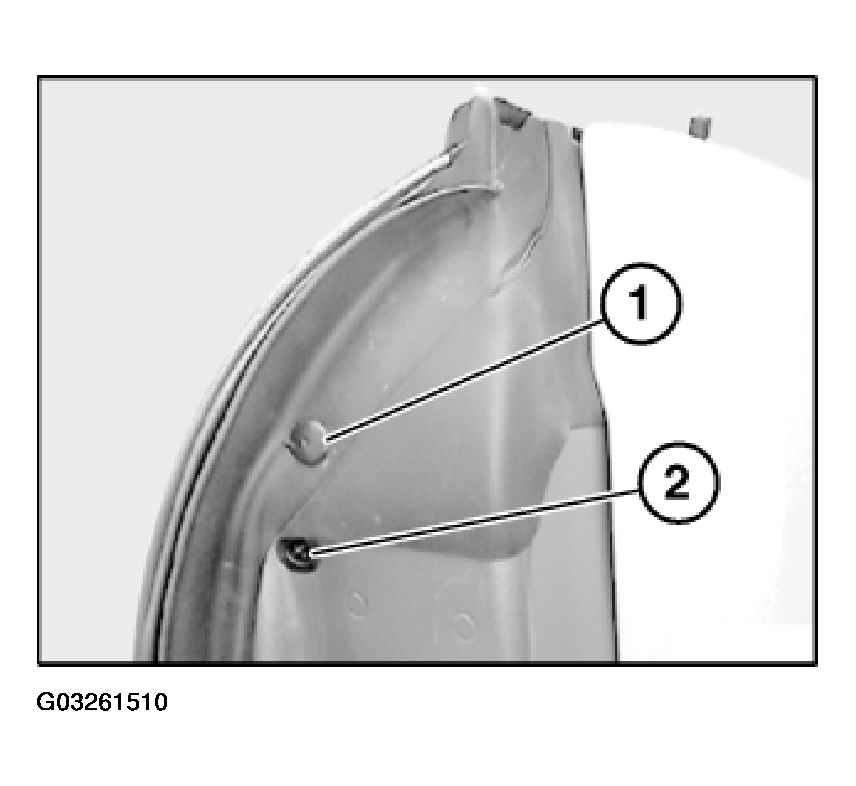

Fig 1: Removing Trim (2-Door Models)

Courtesy of BMW OF NORTH AMERICA, INC.

4-door Models:

Remove cover (1).

Only remove cover (2) to release the OUTER DOOR HANDLE COVER .

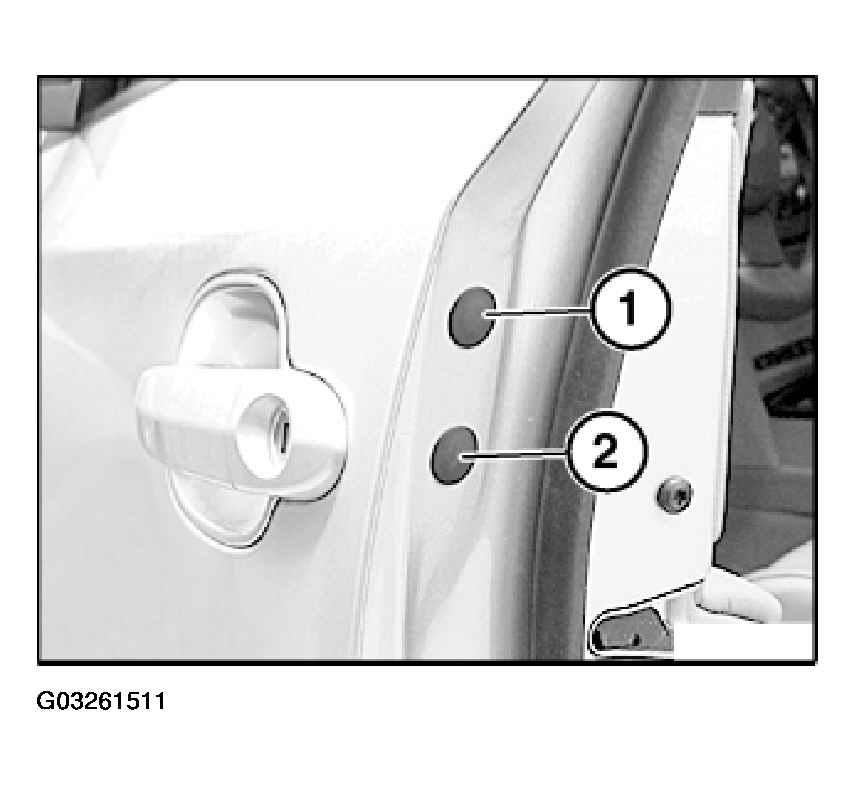

Fig 2: Removing Trim (4-Door Models)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Protect bore (1) against scratching (risk of corrosion).

IMPORTANT:

If the screw is not correctly secured, the lock mechanism can jump back and the sound insulation must be removed.

Pull outside handle (2) outwards/upwards until screw (3) is accessible and hold.

Using special tool 51 2 220 , turn screw (3) counterclockwise and screw down.

Tightening torque: see 5AZ in 51 21 FRONT DOOR LOCKS

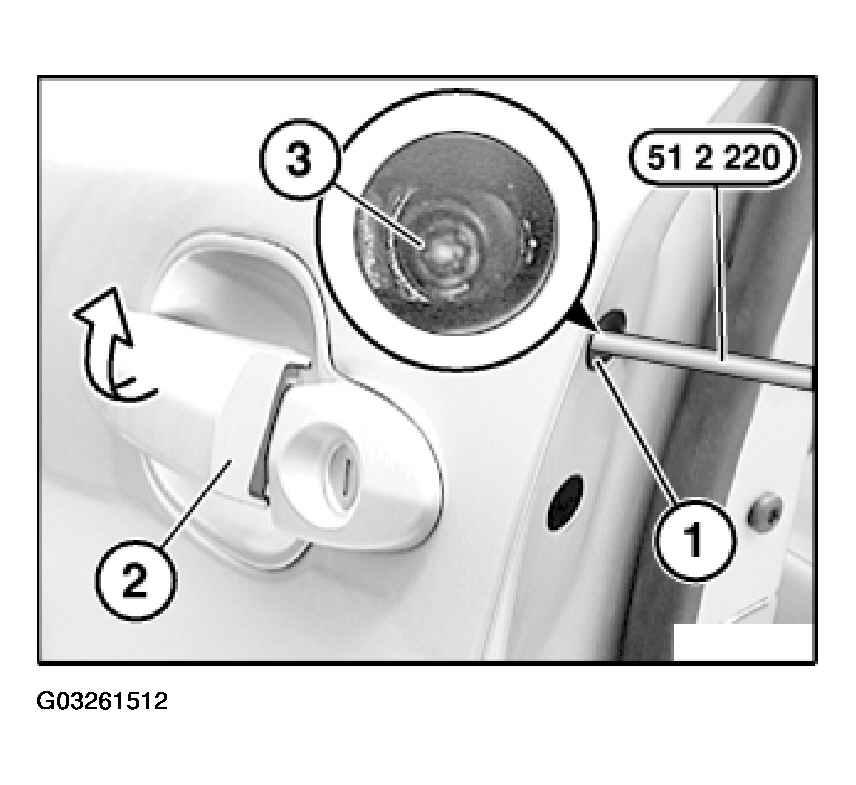

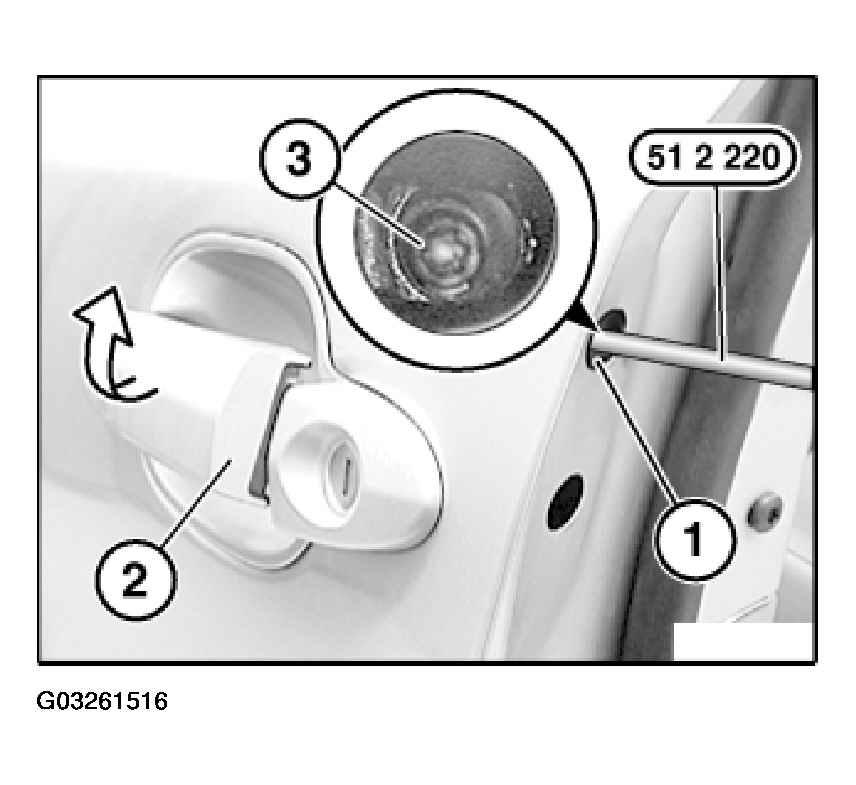

Fig 3: Removing Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

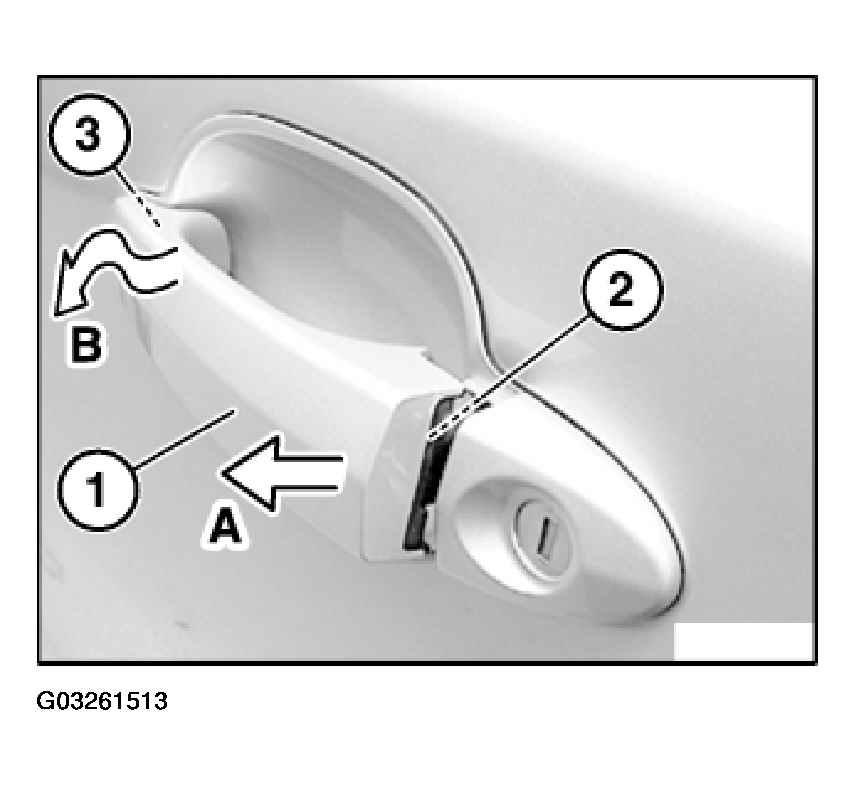

Pull off outside handle (1) from rear lock actuator (2).
Pull off outside handle (1) downwards (as shown in illustration) from front lock actuator (3).

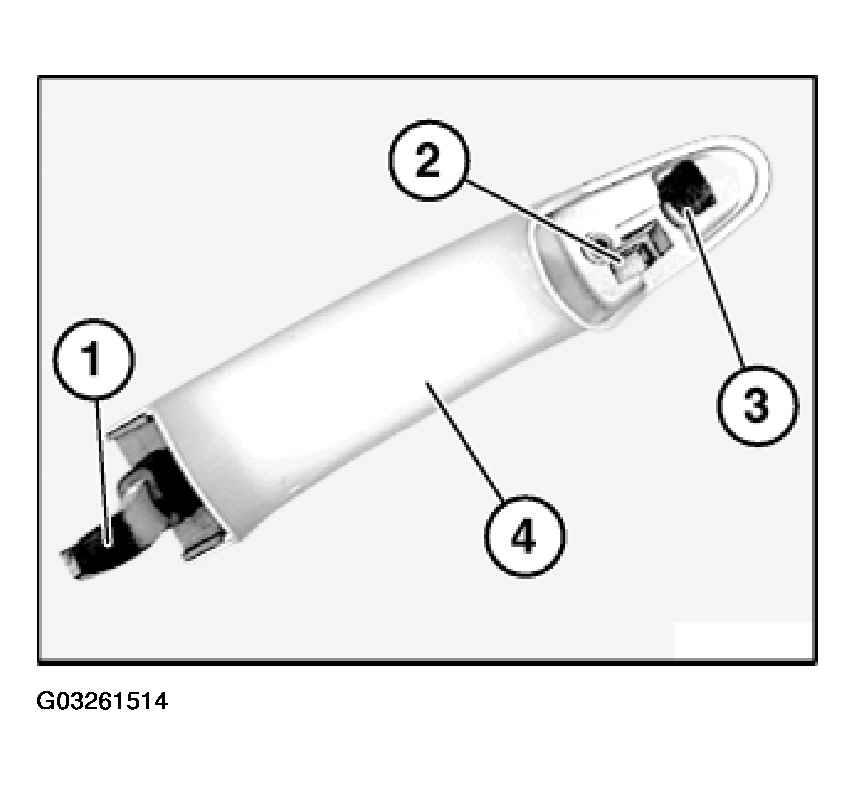

Fig 4: Removing Outside Handle From Rear Lock Actuator
