51 11 701 Replacing left or right bracket for front bumper
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT BUMPER TRIM .

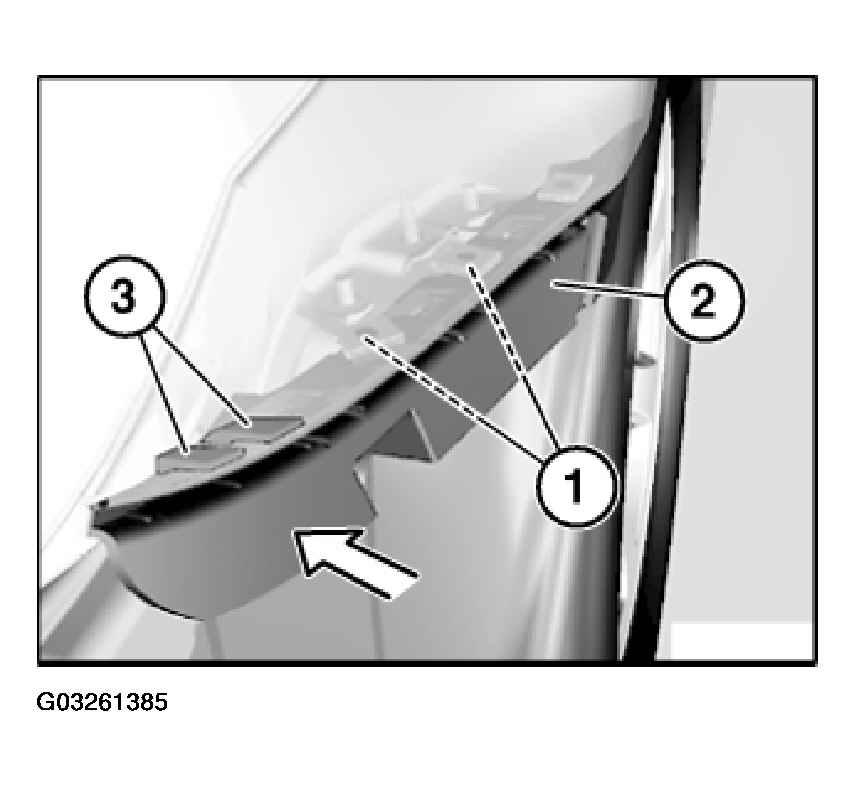

Release screws (1).
Remove bracket (2) in direction of arrow, catch (3) must not be damaged in the process.
Installation:
Bracket for bumper must not be damaged.
