00 00 610 Engine oil service (M54)

Necessary preliminary tasks:

Recycling:

Catch and dispose of used oil in a suitable container. Observe country-specific waste-disposal regulations.

Release and tighten down main flow oil filter cap with a socket. When the main flow oil filter cap is opened, engine oil flows from the oil filter housing back into the oil sump.

Tightening torque is printed on top of cap.

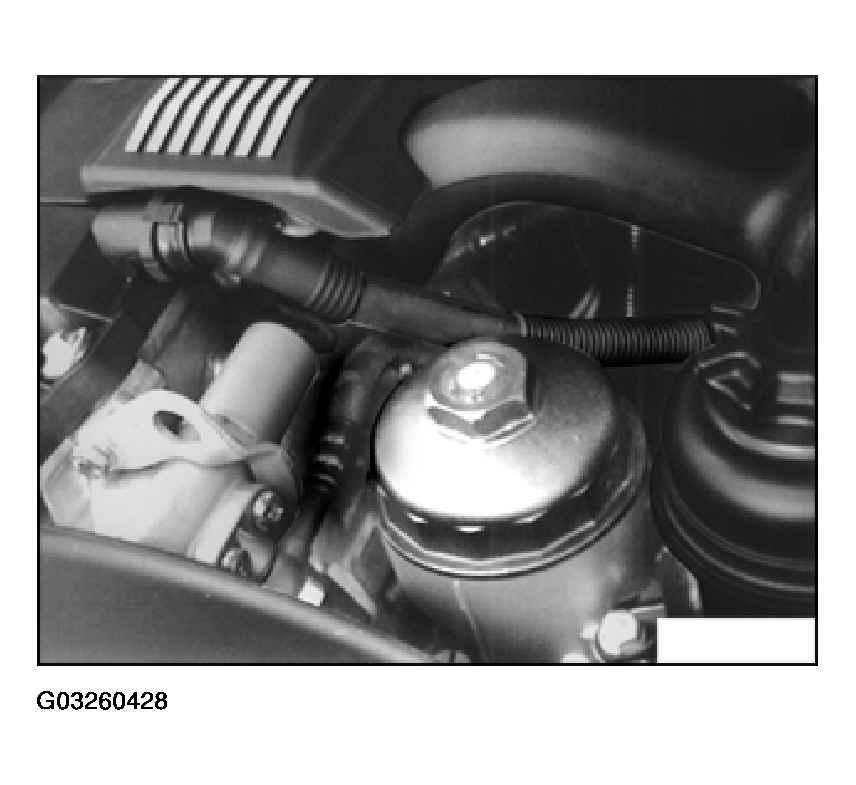

Fig 1: Releasing And Tightening Down Main Flow Oil Filter Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace filter element.

Replace and oil all O-rings.

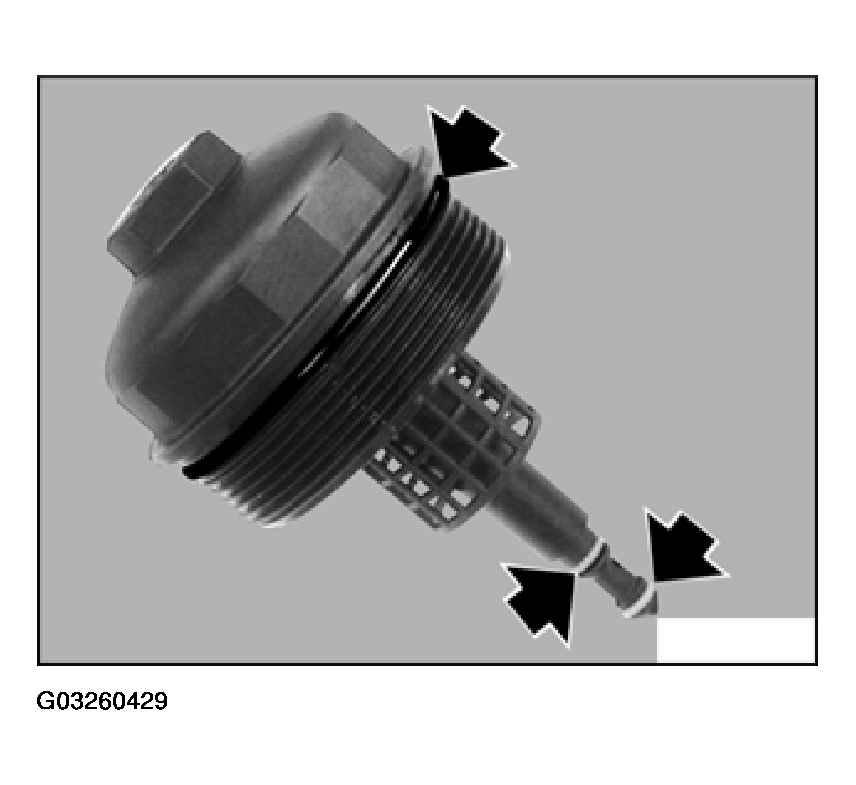

Fig 2: Replacing Filter Element

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil drain plug (1).

Installation:

Replace sealing ring.

Tightening torque, see 11 13 1AZ in 11 13 OIL PAN .

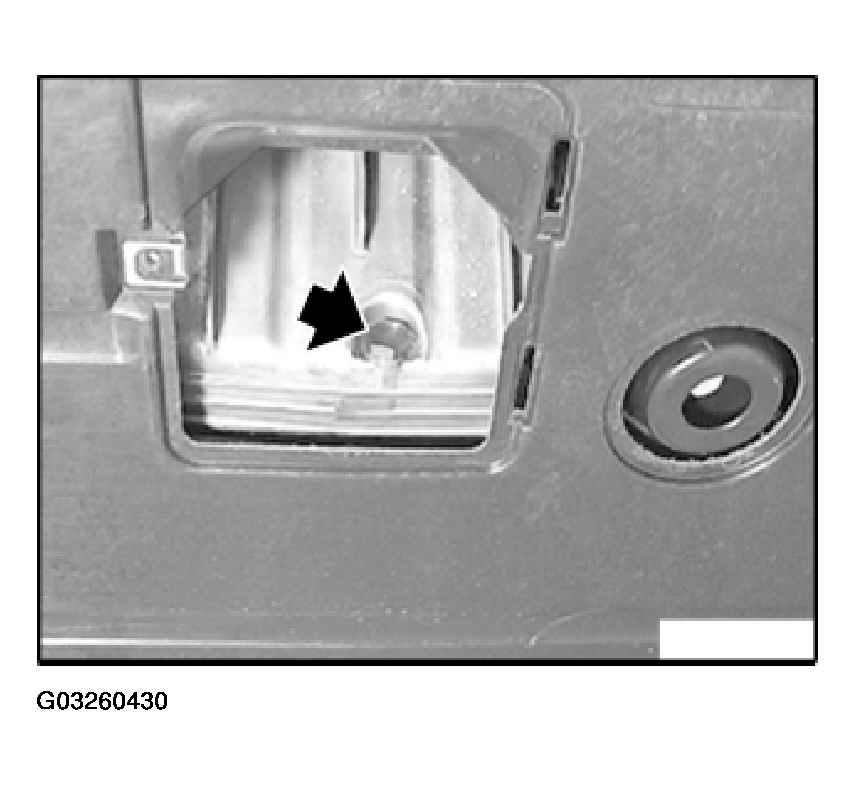

Fig 3: Removing Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble vehicle.

Top up engine oil.

Start engine and run at idle until oil pressure warning lamp goes out.

Switch off engine, check engine oil level after drain time.

Check handbrake for correct operation. See PARKING BRAKE .

At every third oil change, change air cleaner element. See AIR CLEANER .

Reset CBS display. See MODELS WITH CONDITION BASED SERVICE (CBS) .
