63 21 104 Replacing sealing frame for left or right rear light (on rear lid)
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REAR LIGHT .

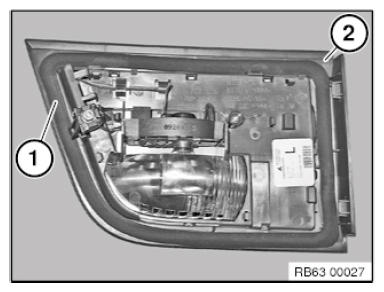

Detach sealing frame for rear light (1) from rear light (2).
Installation note:
Clean bonding surface.
Make sure sealing frame for rear light (1) is correctly positioned and bonded all round on rear light (2).
