41 11 516 Replace Left Carrier Support (Partial Replacement, Front Side Panel Removed)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only APPROVED SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required:

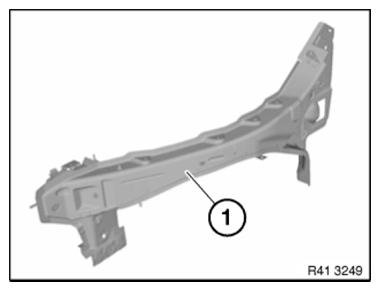

(1) Support carrier, wheel arch, front,

Fig 1: Identifying Front, Wheel Arch Support Carrier
Courtesy of BMW OF NORTH AMERICA, INC.

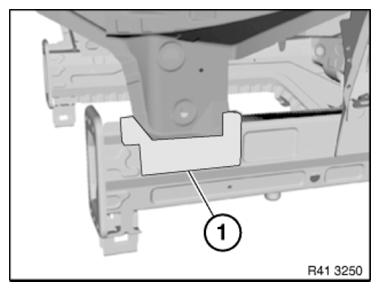

Open weld joints in area (1).

Fig 2: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

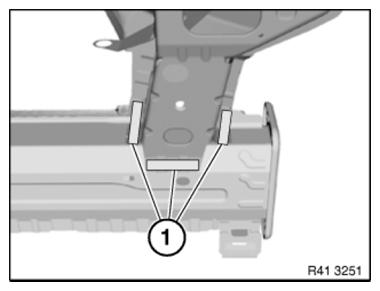

Open weld joints in areas (1).

Fig 3: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to spring strut dome!

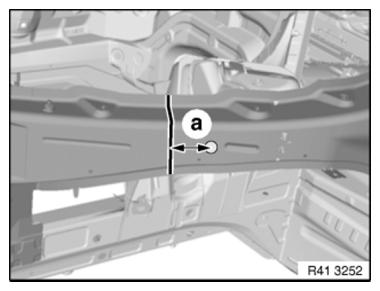

Mark severance cut in accordance with measurement a and cut support carrier.

Measurement a=50 mm before 20 mm dia. bore

Installation:

Adjust new part to fit with straightening attachment or universal mount.

Weld in REINFORCEMENT PLATE at severance cut.

Fig 4: Identifying Severance Cutting Dimension From Bore Diameter

Courtesy of BMW OF NORTH AMERICA, INC.
