41 11 028 Replacing Left Engine Support (Partial Replacement Before Front Axle)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING EQUIPMENT for repairs!

Place vehicle on straightening bench.

Following new body parts are required:

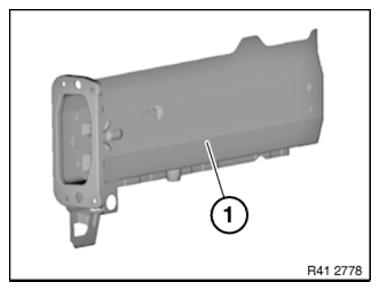

(1) Engine support, front

Fig 1: Identifying Front Engine Support
Courtesy of BMW OF NORTH AMERICA, INC.

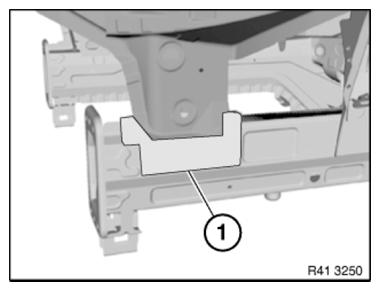

Open welded connections in area (1).

Fig 2: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

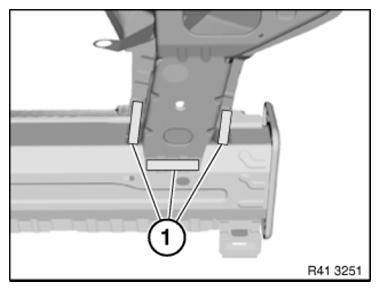

Open welded connections in areas (1).

Fig 3: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, picture shows the support carrier removed.

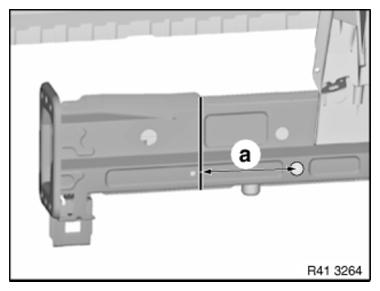

Mark severance cut in accordance with Dimension a and cut.

Measurement a=150 mm from bore dia. 20 mm

Fig 4: Identifying Severance Cutting Dimension From Dore Diameter

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cut to match vehicle and cut.

In areas (1) the engine support can no longer be welded.

To avoid groaning noises, grind down component in areas (1) by approx. 2 mm.

Installation note:

Adjust new part to fit with set of attachments or universal mount.

Weld in REINFORCEMENT PLATE at severance cut.

Fig 5: Identifying Engine Support Welded Areas

Courtesy of BMW OF NORTH AMERICA, INC.
