41 35 575 Removing And Installing/Replacing Front Left Side Panel Module Carrier
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove FRONT SIDE PANEL
- Remove AIRBAG SENSOR

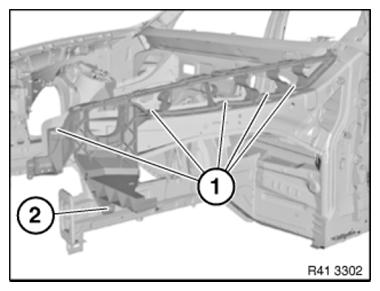

Release screws (1).
Tightening torque 41 35 10AZ .
Slacken nut (2).
Tightening torque 41 35 11AZ .
Remove module carrier.
