41 35 101 Replacing Rear Left Side Panel: Notes
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Procedure observe REPAIR STAGE 2 !
Following new body parts are required:

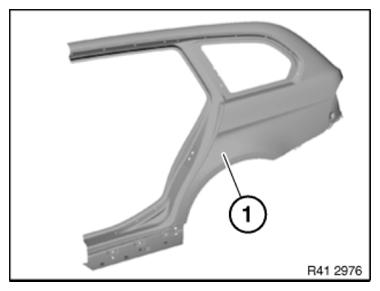

- (1) Side frame, rear
- Reinforcement plate, side sill
- Reinforcement plate, D-pillar
- Reinforcement plate, C-pillar
- Reinforcement plate, universal
- Shaped part entrance, outer
- Mounting nuts
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Adhesive K5a | 1 |
| Blind rivets N3 | 15 |
| Blind rivets N1 | 3 |
| Punch rivets N4 | 39 |
| Punch rivets N5 | 1 |
| EMC screws | 2 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
