41 35 050 Replacing Front Left Side Panel

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Observe 41 00... BODY GAP DIMENSIONS

CAUTION: Set down side panel on a soft surface.
Risk of damage

Necessary preliminary tasks:

Remove FRONT SIDE PANEL
Remove HEADLIGHT
Remove FOG LAMP
Remove SPRAY NOZZLE OF HEADLIGHT WASHER SYSTEM

Following new body parts are required:

(1) Side panel, front

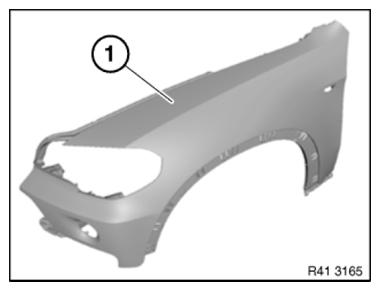

Fig 1: Identifying Front Side Panel
Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 41 35 6AZ .

Unclip retaining tabs (2) and remove bumper mountings on inside and outside.

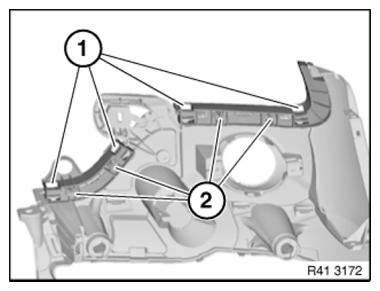

Fig 2: Identifying Bumper Retaining Tabs And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
