41 52 101 Replacing Rear Left Or Right Door

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Necessary preliminary work:

Remove REAR DOOR

Following new body parts are required:

(1) Door, rear
(2) Crash reinforcement

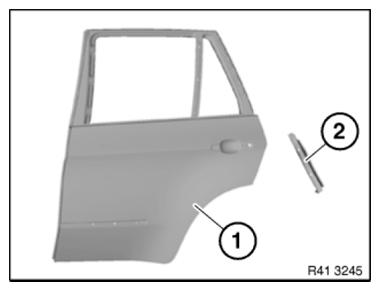

Fig 1: Identifying Rear Door And Crash Reinforcement
Courtesy of BMW OF NORTH AMERICA, INC.

Feed in crash reinforcement (1).

Tighten down screws (2).

Tightening torque 41 52 5AZ .

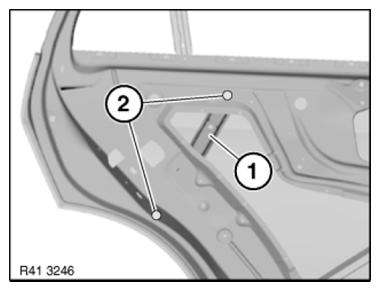

Fig 2: Identifying Crash Reinforcement And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
