41 62 007 Removing And Installing Lower Rear Lid Section

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Necessary preliminary tasks:

Remove TRIM FOR REAR LID LOWER SECTION .
Disconnect all cable plug connections and pull wiring harness out of rear lid.

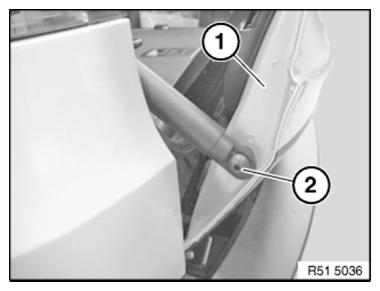

Open rear lid (1) until screw (2) is accessible (risk of injury by spring tension).

With rear lid in this position, release screw (2) and insert in bore of support (3).

Tightening torque 51 24 7AZ .

Fig 1: Identifying Rear Lid And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

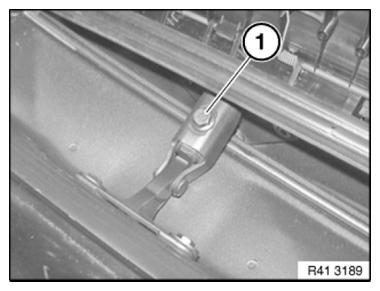

Release screws (1) on both sides of vehicle.

Tightening torque 41 62 8AZ .

Installation:

Screw down rear lid lower section with fitting screws. This dispenses with the need for adjustment after installation.

Fig 2: Identifying Rear Lid Lower Section Screws

Courtesy of BMW OF NORTH AMERICA, INC.
