41 12 535 Replace Luggage Compartment Floor And Both Side Members (Tail Panel Trim Removed): Notes
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Place vehicle on straightening bench.
Observe (REPAIR STAGE 3) procedure!

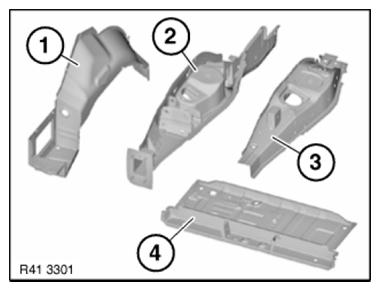

Following new body parts are required:
- (1) Wheel arch, rear left and right
- (2) Side member, rear left and right
- (3) Side member, top left and right
- (4) Luggage compartment floor
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Blind rivet N3 | 57 |
| EMC screws | 13 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
