41 61 014 Adjusting Engine Compartment Lid: Notes

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body components.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

NOTE: Observe 41 00... BODY GAP DIMENSIONS .
Carry over schematic diagram to the relevant vehicle type.

Slacken nuts (1) of hinges on left and right.

Engine compartment lid must be able to be moved.

Tightening torque 41 61 1AZ .

NOTE: If the adjustment range is not sufficient, release retaining screws of engine compartment lid hinge on body and move hinge.

Tightening torque 41 61 2AZ .

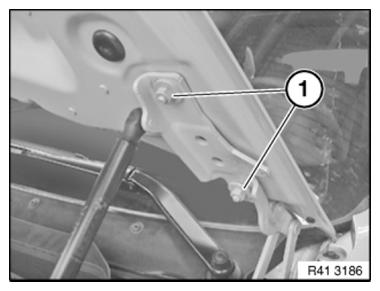

Fig 1: Identifying Left And Right Hinge Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Strikers must snap into place in the locks.

Adjust engine compartment lid.

NOTE: HEIGHT ADJUSTMENT of engine compartment lid to side wall by means of stop pads.

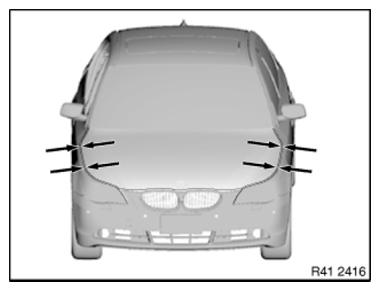

Fig 2: Identifying Engine Compartment Lid Adjustment Sections

Courtesy of BMW OF NORTH AMERICA, INC.

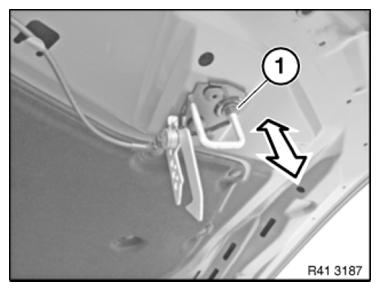

NOTE: Adjust the height of the engine compartment lid to the front bumper by turning the nuts (1) on the strikers.

Fig 3: Adjusting Engine Compartment Lid Height

Courtesy of BMW OF NORTH AMERICA, INC.

If an adjustment is necessary, remove the FRONT DECORATIVE GRILLE .

Do not loosen nut (2).

Adjust the engine compartment lid by turning the spacers (1) on both sides.

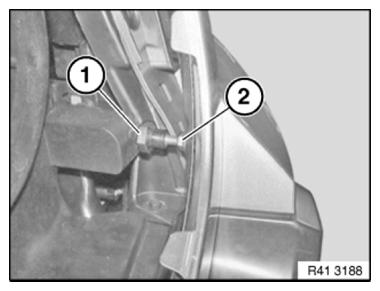

Fig 4: Identifying Engine Compartment Lid Spacers And Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Check function of retaining hook.
