51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Press down catches (1) and remove front radiator grille (2) from outside.

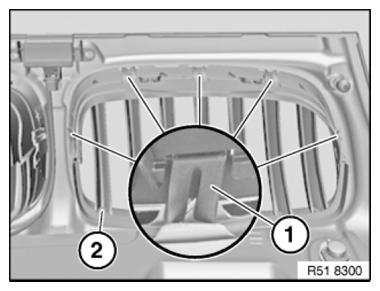

Fig 1: Identifying Front Radiator Grille And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All catches and guides on front grille must not be damaged.

Press on chrome ring to push front radiator grille (2) into bonnet/hood.

Fixtures (1) must engage correctly.

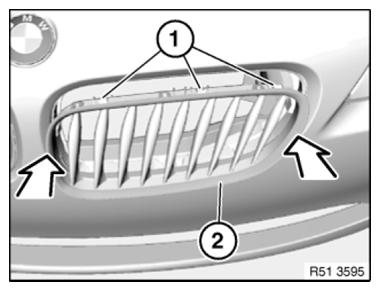

Fig 2: Pushing Front Radiator Grille Into Bonnet/Hood

Courtesy of BMW OF NORTH AMERICA, INC.
