84 50 060 Removing and installing/replacing Bluetooth antenna
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove center console. Refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .

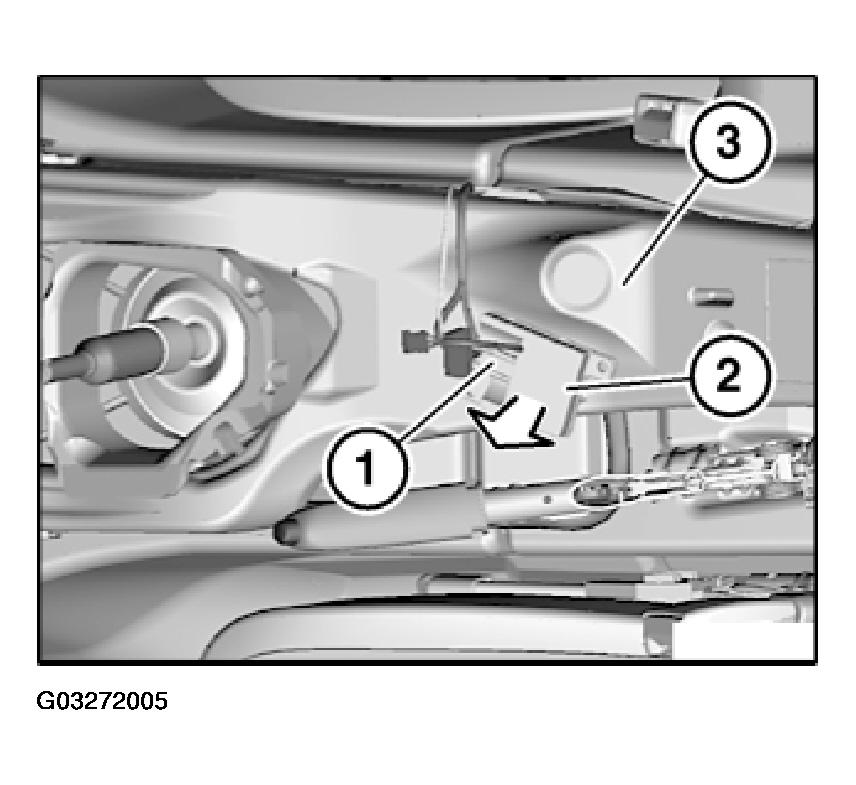

Unfasten plug connection (1) and disconnect.
Detach Bluetooth antenna (2) in direction of arrow from rear-compartment ventilation duct (3).
When replacing dual-lock tape:
- Clean bonding surfaces.
- Stick on dual-lock tape and press down firmly with fingers for at least 2 secs. (ambient temperature at least 18° C).
- Fit Bluetooth antenna on rear-compartment ventilation duct only after a minimum period 30 minutes (strain-free dwell time).
- Subjecting the bond to premature load will result in a loss of adhesion and thus a defective bond => use new dual-lock tape.
Installation:

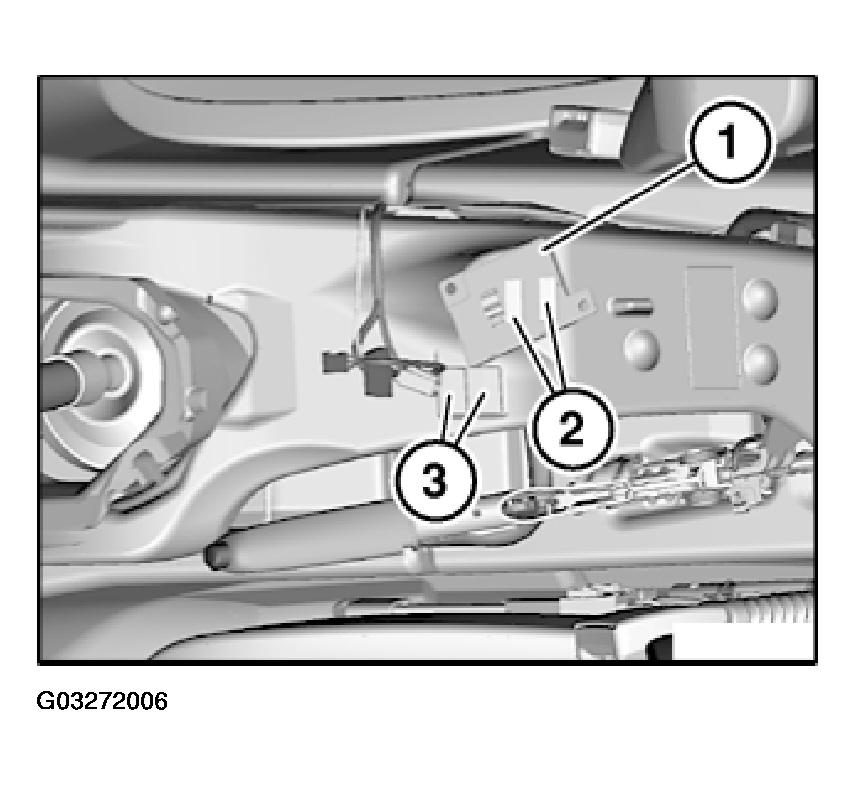

Fit Bluetooth antenna (1) during installation so that dual-lock tapes (2) and (3) coincide exactly.
