52 26... Removing and installing pivot bearing trim (40 % rear seat)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove middle slide trim . See 52 26... REMOVING AND INSTALLING MIDDLE SLIDE TRIM (40 % REAR SEAT) or 52 26... REMOVING AND INSTALLING MIDDLE SLIDE TRIM (60 % REAR SEAT) at top only.
Remove INNER FOLLOWER TRIM .
Partially remove BACKREST COVER .

Release screws (1).

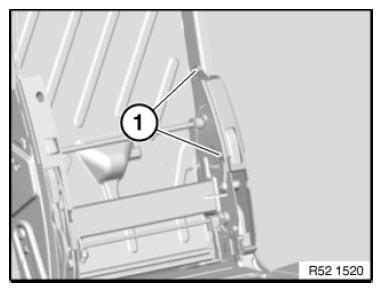

Fig 1: Identifying Backrest Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 52 26 27AZ .

Unclip trim (2) in marked area.

Carefully tighten follower (3) on seat cushion frame.

Feed trim (2) out of seat mechanism.

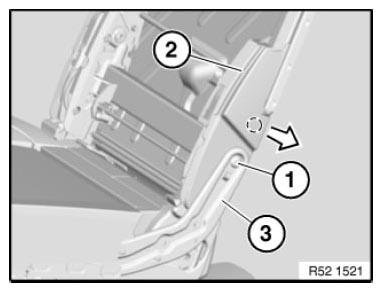

Fig 2: Identifying Trim, Follower And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
