52 26 412 Replacing backrest cover for right rear seat

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks

Remove right REAR SEAT .
Remove HEAD RESTRAINT LOCATORS .
Remove TRIM FOR REAR SEAT BACK ACTUATOR .
Remove REAR PANEL TRIM .

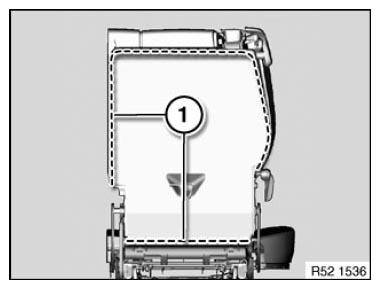

Lever welt in marked area (1) out of backrest frame.

Remove backrest cover with padding.

Fig 1: Identifying Backrest Frame Welt In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

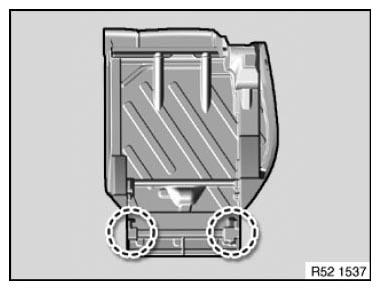

Detaching cover and padding:

Release all retainers in marked area
Remove cover from padding
Remove remaining retainers from cover and padding

Fig 2: Identifying Cover And Padding Retainers
Courtesy of BMW OF NORTH AMERICA, INC.

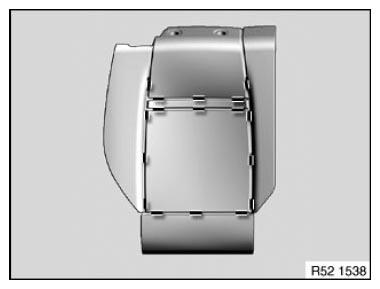

Detaching cover and padding:

Release all retainers in marked area
Remove cover from padding
Remove remaining retainers from cover and padding

Fig 3: Identifying Cover And Padding Retainers
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

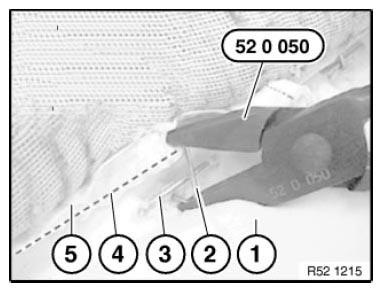

Insert new retainer (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Backrest cover

Fig 4: Inserting Retainer With Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

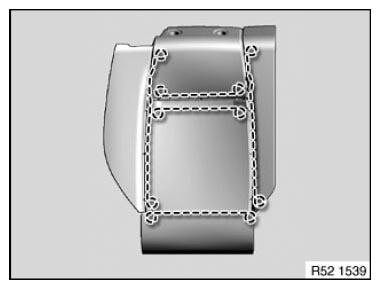

Replacing cover:

Pull all trim wires out of cover
If necessary, cut pockets in new cover for trim wires
Push trim wires into cover pockets

Fig 5: Identifying Cover Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.
