52 26... Removing and installing pivot bearing lower section trim (40 % rear seat)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove PIVOT BEARING TRIM
Partially remove SEAT COVER

Release screw (1).

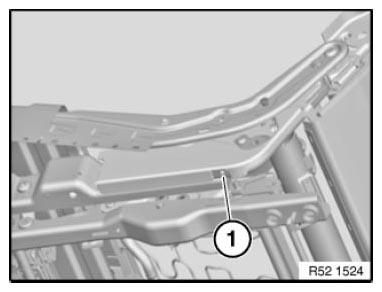

Fig 1: Identifying Pivot Bearing Trim Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Disengage trim (2) in marked area.

Feed trim (2) out of seat mechanism.

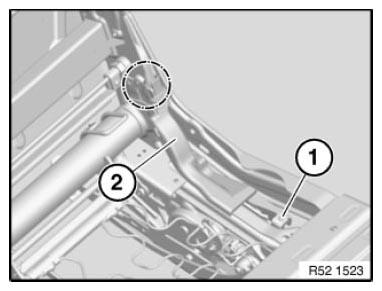

Fig 2: Identifying Trim And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
