52 26... Removing and installing/replacing trim for center armrest

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Carefully unclip channel cover strip (1).

Installation:

Risk of damage! Plastic eyelets of front trim can break.

If necessary, replace defective trim or channel cover.

Fig 1: Removing Channel Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim for center armrest.

Installation:

If necessary, replace faulty clips.

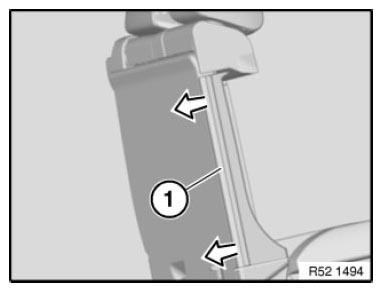

Fig 2: Removing Centre Armrest Trim

Courtesy of BMW OF NORTH AMERICA, INC.
