52 26... Removing and installing/replacing rear head restraint locator
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove head restraint See 52 26 388 REMOVING AND INSTALLING/REPLACING REAR MIDDLE HEAD RESTRAINT or 52 26 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT
Press backrest cover with padding next to guide downwards to expose detent lugs.

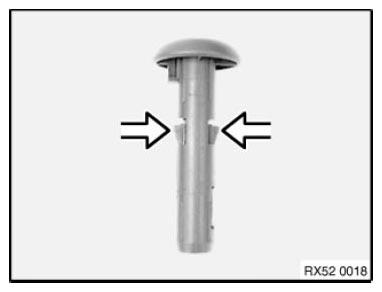

Unlock detent lugs on left and right with screwdriver and remove guide towards top.
IMPORTANT:
Do not damage backrest cover.
