52 26 412 Replacing backrest cover for rear seat (through-loading system) on right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks

Remove right BACKREST COVER .
Remove HEAD RESTRAINT GUIDES .
Remove BACKREST ACTUATOR TRIM AND LOCK TRIM .

Lever out welt in marked area.

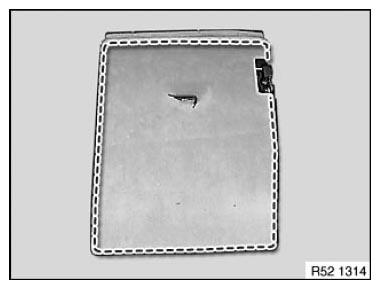

Fig 1: Identifying Welt Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and padding:

Release all retainers in marked area.
Remove cover from padding.
Remove remaining retainers from cover and padding.

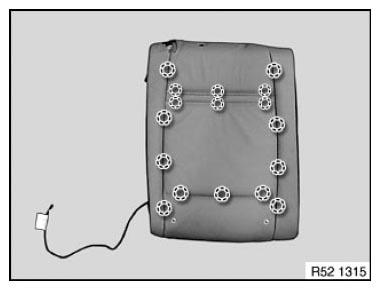

Fig 2: Identifying Retainers In Marked Area
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

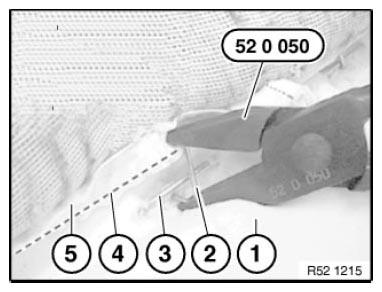

Insert new retainer (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Back-rest cover

Fig 3: Inserting Retainer With Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of cover
If necessary, cut pockets in new cover for trim wires
Push trim wires into cover pockets

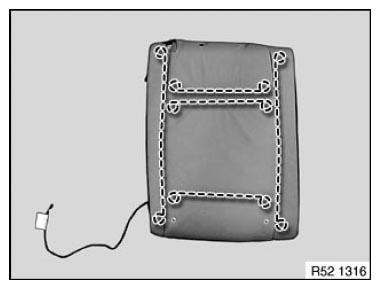

Fig 4: Identifying Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.
