52 26 311 Removing and installing/replacing lock for left or right rear seat backrest

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Unclip lock trim on backrest edge in direction of arrow (1).

Slide back of lock trim in outward direction and remove in direction of arrow (2).

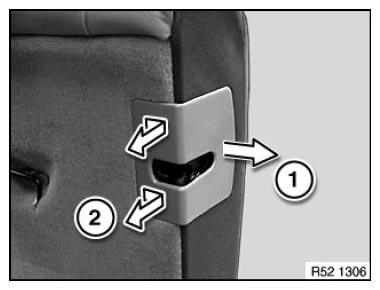

Fig 1: Sliding Back Of Lock Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs on trim must not be damaged.

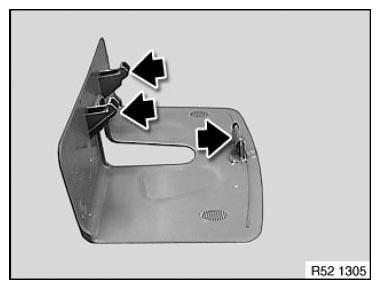

Fig 2: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Insert plastic wedge from outside between trim (1) and lock.

Carefully lever outer side of trim (1) with plastic wedge upwards out of catch.

Lever inner side of trim (1) with plastic wedge out of catch.

Remove trim upwards.

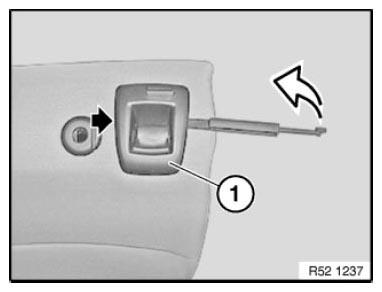

Fig 3: Inserting Plastic Wedge From Outside Between Trim And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out backrest cover (1) in working area.

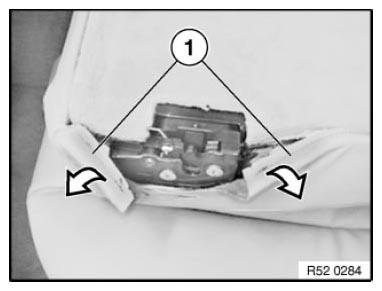

Fig 4: Removing Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and feed lock (1) out of rear seat backrest.

Tightening torque 52 26 05AZ .

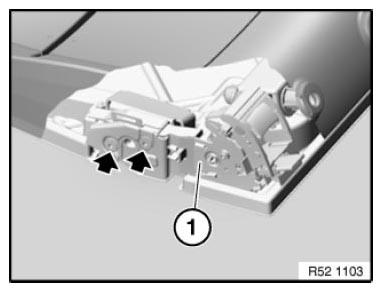

Fig 5: Locating Feed Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.
