52 26 030 Removing and installing/replacing rear center armrest
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove FRAME FOR SKI BAG or
- TRIM FOR CENTRE ARMREST .

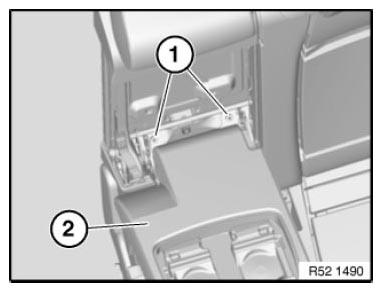

Release screws (1).
Tightening torque: 52 26 22AZ .
Remove center armrest from backrest frame.
