52 17 035 Removing and installing/replacing gearing for head restraint adjustment
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove SHAFT for head restraint adjustment

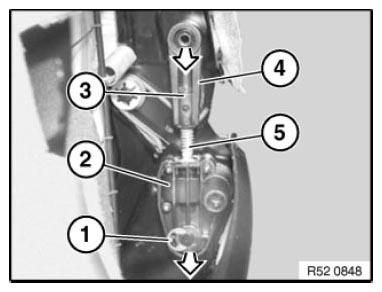

Release screws (4) on left and right.
Tightening torque: 52 10 10AZ .
Remove retainer (1) on left and right.
Remove gearing (2) on left and right straight towards front.
Installation:
To ensure identical adjustment of gearings (2), carry out following work step on both gearings:
- Unscrew component (5) until threaded rod (6) is flush with edge (3).
