52 17 034 Removing and installing/replacing shaft for head restraint adjustment
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove FRONT SEAT .
- Remove BOTH REAR PANELS .
- Remove INNER COVER .

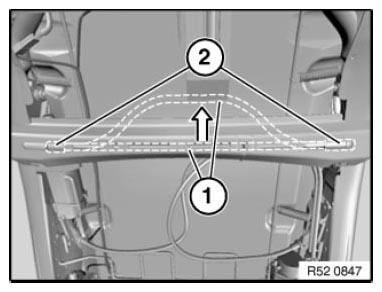

Bend shaft (1) in direction of arrow.
Pull shaft (1) out of gear (2) and remove.
