52 17 030 Removing and installing/renewing backrest frame on left or right front seat (comfort)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SEAT .
Remove BACKREST COVER for front seat.

Release all cable ties on wiring harness (1).

Disconnect all marked plug connections.

Feed through wiring harness (1) at bottom right on backrest frame.

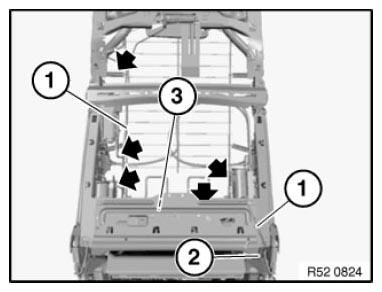

Fig 1: Identifying Wiring Harness And Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip left and right clips (1).

Unhook seat covers (2) on left and right.

Release left and right screws (3).

Tightening torque 52 10 2AZ .

If necessary, remove lumbar cushion with drive and valve block.

Remove backrest frame.

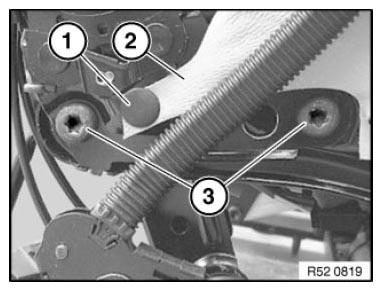

Fig 2: Identifying Seat Covers, Clips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new backrest frame part contains all the drives.
