52 17 405 Replacing backrest cover for left or right front seat (comfort)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks

Remove FRONT SEAT .
Remove BOTH REAR PANELS on front seat backrest.
Remove INNER COVER on front seat.

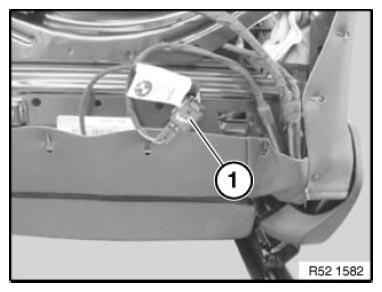

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

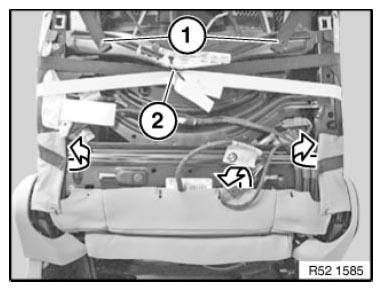

Disengage clamping bands (1).

Loosen retainers (2).

Installation:

52 0 050 Bend new retainers closed with pliers.

Detach backrest cover at bottom from backrest frame.

Fig 2: Identifying Clamping Bands And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

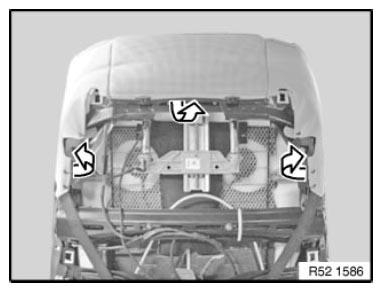

Detach backrest cover at top from backrest frame.

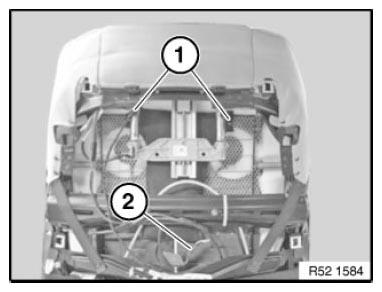

Fig 3: Removing Backrest Cover At Top From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

For A/C optional extra only:

Loosen retainers (1).

Installation:

Bend new retainers closed with pliers 52 0 050 .

Unlock and disconnect plug connection (2).

Fig 4: Identifying Plug Connections And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

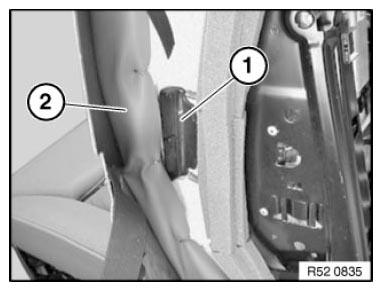

Remove backrest cover (2) complete with padding towards front.

Installation:

Adjusting unit (1) must be secured on left and right in opening of padding.

Fig 5: Identifying Adjuster And Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

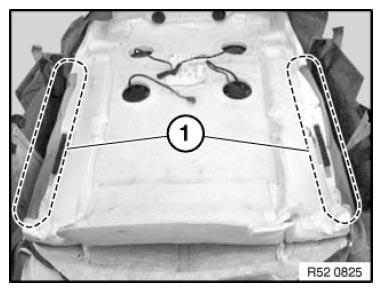

Detach all retainers in areas (1).

Fig 6: Identifying Retainers Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Release all retainers.

Installation:

52 0 050 Bend new retainers closed with pliers.

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

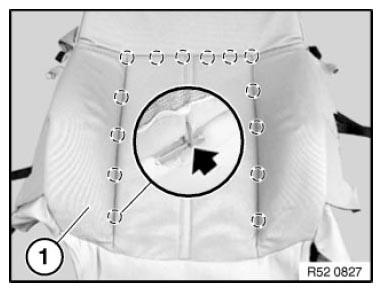

Fig 7: Identifying Backrest Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

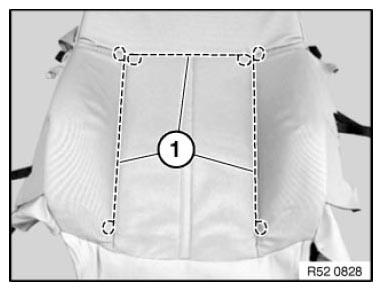

Pull trim wires (1) out of backrest cover.

Installation:

Push trim threads (1) into new backrest cover.

If necessary, cut into new component.

Fig 8: Identifying Backrest Cover Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

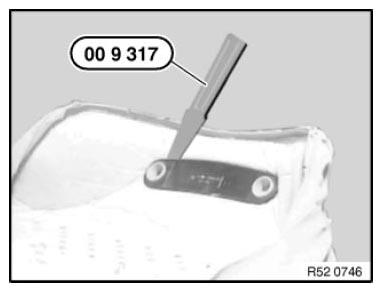

Lever out locking strip of head restraint guide with plastic wedge 00 9 317 .

Installation:

Mount straight front face of head restraint guide towards front.

Fig 9: Removing Locking Strip Of Head Restraint Guide Using Plastic Wedge (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
