52 30 080 Removing and installing/replacing left seat backrest frame

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove 3RD SEAT ROW .
Remove BACKREST COVER .
Removing ACTUATING MECHANISM FOR REAR SEAT BACKREST .
Remove OUTER TRIM .

Detach Starlock washer (1) from shaft.

Remove shaft.

Installation:

Fit left and right plastic sleeves on shaft.

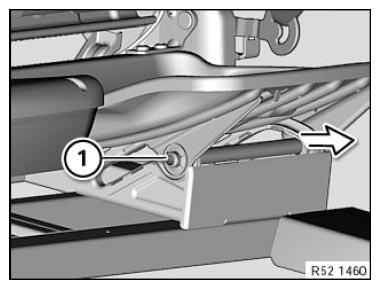

Fig 1: Disconnecting Starlock Washer From Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Release fitting screws (1).

Tightening torque: 52 30 02AZ .

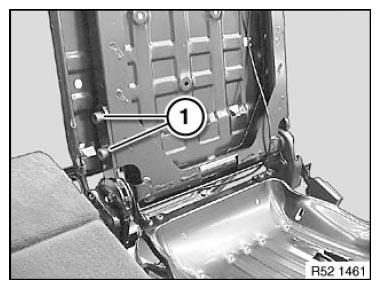

Fig 2: Identifying Fitting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release outer bearing screw (1).

Tightening torque: 52 30 03AZ .

Remove seat backrest frame (2) from assembly frame.

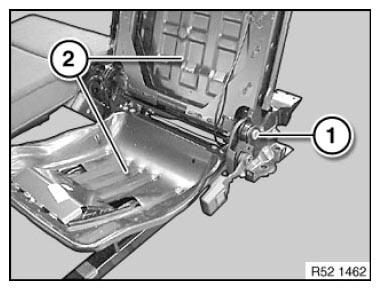

Fig 3: Identifying Seat Backrest Frame And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Removing SEAT FABRIC .
