52 30 000 Removing and installing complete 3rd seat row

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove LASHING RAIL IN LUGGAGE COMPARTMENT FLOOR .
Remove PANEL FOR LUGGAGE COMPARTMENT AT BOTTOM .

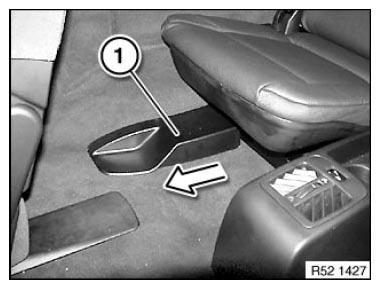

Unclip cover (1) on left and right and remove in direction of arrow.

Installation:

Replace faulty cover.

Fig 1: Removing Left And Right Cover

Courtesy of BMW OF NORTH AMERICA, INC.

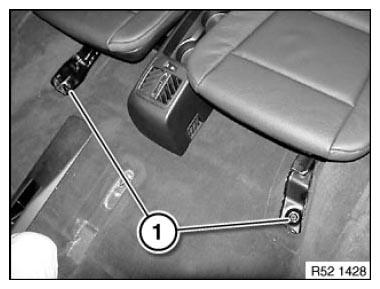

Release screws (1).

Tightening torque 52 30 01AZ .

Fig 2: Identifying Seat Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

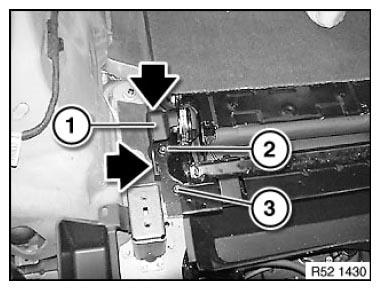

Access to front screw (2) concealed by trim (1).

Unclip trim (1) towards top.

Release screws (2) and (3).

Tightening torque 52 30 01AZ .

Fig 3: Identifying Trim And Front Screws

Courtesy of BMW OF NORTH AMERICA, INC.

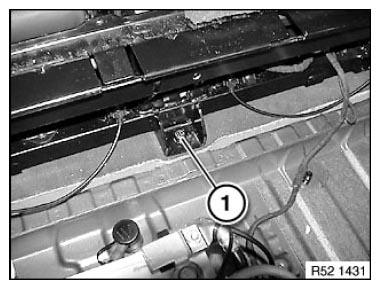

Fold rear seat backwards forwards.

Release screws (1).

Tightening torque 52 30 01AZ .

Fig 4: Identifying Rear Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

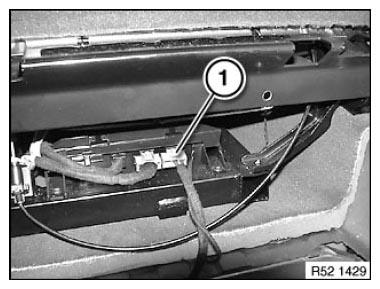

Unlock PLUG CONNECTION (1) and disconnect.

IMPORTANT: Risk of damage!
Cover sill and entrance area with protective covers.

Lift rear seat with a 2nd person helping out of vehicle.

Fig 5: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
