51 47... Removing and installing/replacing bottom left or right trim panel for luggage compartment (with 3rd seat row)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, fold out 3rd seat row.

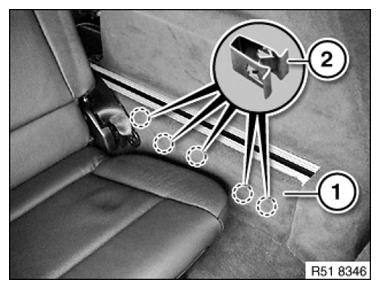

Detach trim panel (1) from retainers (2) towards top.

Installation:

If necessary, replace faulty retainers (2).

Fig 1: Identifying Trim Panel And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

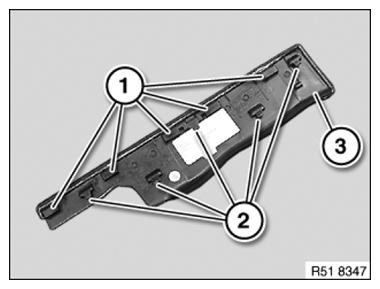

Guides (1) and tabs (2) on trim panel (3) must not be damaged.

Fig 2: Identifying Trim Panel, Guides And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.
