54 13 130 Removing and installing front cross-member
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove GLASS SLIDE/TILT SUNROOF .
- Remove DRIVE .

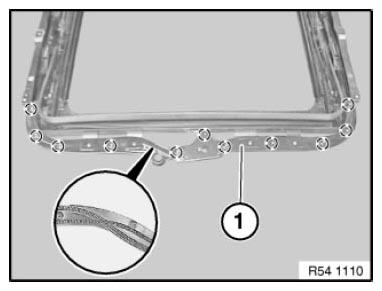

Release screws in marked area.
Tightening torque: 54 12 03AZ .
Remove cross-member (1).
If necessary, release fabric adhesive tape and replace.
Installation:
Pitch cables must be correctly located in guide
