54 13 080 Removing and installing complete glass slide/tilt sunroof

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

54 1 110

Necessary preliminary tasks

Remove ROOFLINER .
Remove HEAD AIRBAG GAS GENERATOR .
Open tailgate.

IMPORTANT: Two persons are required to help in removing the glass slide/tilt sunroof.

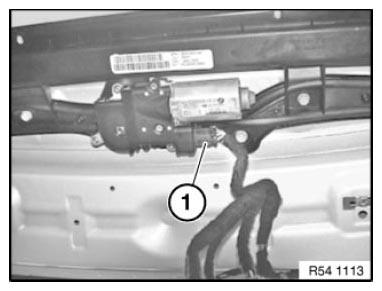

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Airbag lead must not be damaged.

Unclip holder with airbag lead from glass slide/tilt sunroof frame.

Installation note:

Lay airbag lead without tension or kinks.

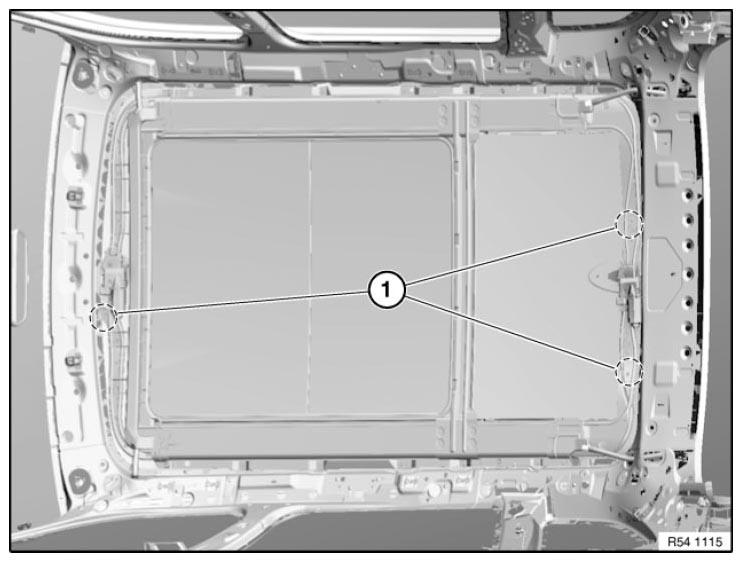

Fig 2: Locating Airbag Lead On Glass Slide/Tilt Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

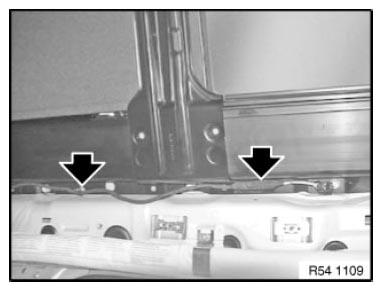

Fig 3: Identifying Water Drain Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Detach water drain hoses (1)
NOTE: Check hoses for damage and moisten with water before fitting.
Release screws in marked area
Tightening torque: 54 12 02AZ .

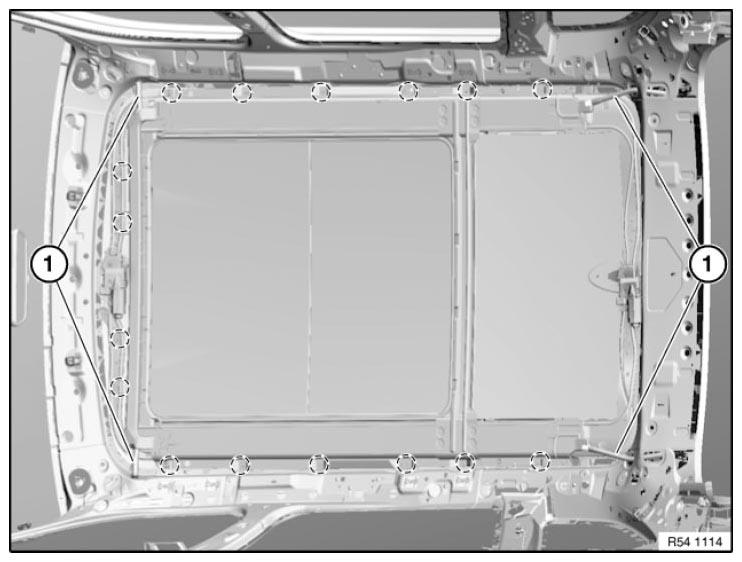

Fig 4: Identifying Slide/Tilt Sunroof Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Helper must hold glass slide/tilt sunroof to prevent it falling out.
Release screws (1) on and carefully lower slide/tilt sunroof.

IMPORTANT: Do not damage any surrounding components when removing the glass slide/tilt sunroof.

Remove glass slide/tilt sunroof completely (through rear lid at rear).

Installation note:

In the case of dirt contamination CLEAN PANORAMA GLASS ROOF GUIDE RAILS .

Before installation of glass slide/tilt sunroof, check water drain hoses for continuity. Clean water drain hoses as required.

Installation note:

If necessary, remove fabric adhesive tape.

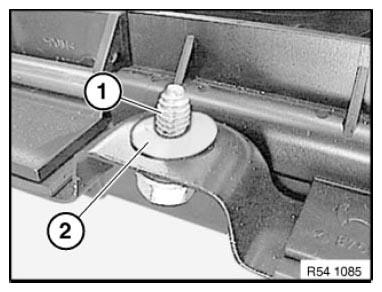

To stop creaking noises, secure all screws (1) prior to installation with plastic washers (2).

If the standard screws can no longer grip, use "repair screws" (have larger threads).

Fig 5: Identifying Plastic Washers And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

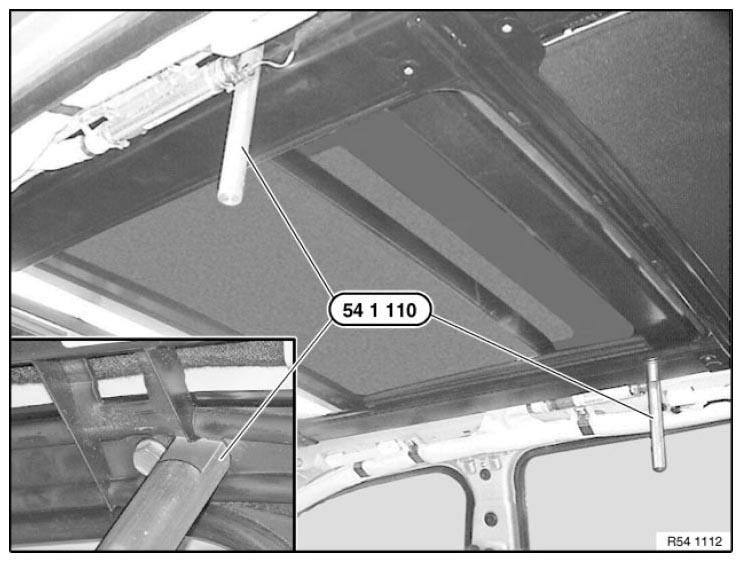

Fig 6: Inserting Special Tool (54 1 110) Into Locating Holes In Panorama Roof And Body

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

To align panorama sunroof to body-cutout, insert screws and tighten loosely.

Panorama glass roof must still be able to move in the body aperture.

On account of leaks, panorama glass roof must be exactly aligned to body aperture.

Insert special tool 54 1 110 into locating holes in panorama roof and body fully.

Tighten down screws.

Tightening torque: 54 12 02AZ .

IMPORTANT: Do not crush any cables when installing the glass slide/tilt sunroof.

After installation:

Check glass slide/tilt sunroof cover for correct ALIGNMENT and adjust if necessary.

INITIALIZE glass slide/tilt sunroof.
