72 12 060 Removing and installing/replacing left or right head airbag

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
A damaged head airbag must be replaced.
A damaged head airbag exhibits an impaired protective function and in extreme cases loses its protective function altogether.

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD .
Remove ROOFLINER .
Follow INSTRUCTIONS for unlocking and locking airbag plug connection.

Installation summary, retaining elements, head airbag

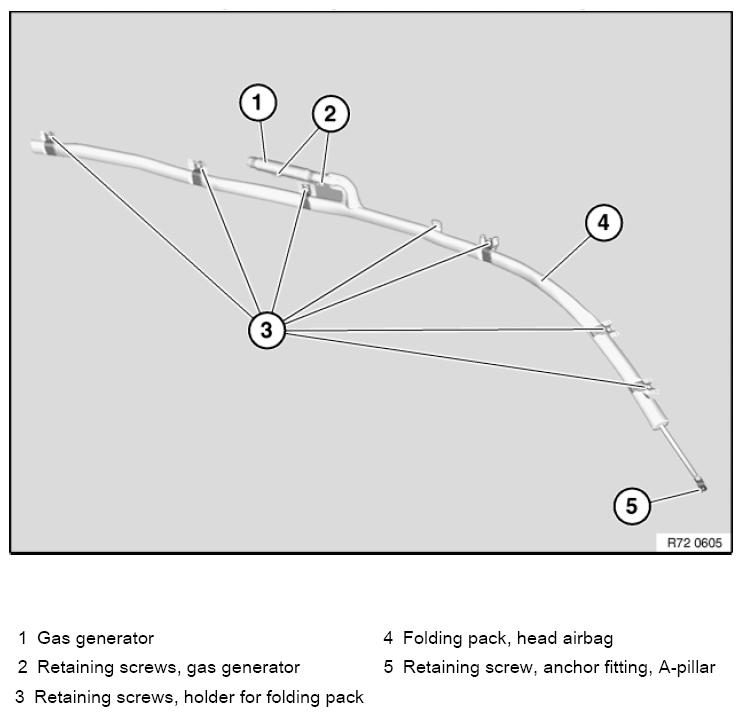

Fig 1: Identifying Retaining Elements And Head Airbag Components

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When removing head airbag, do not damage

Head airbag
Windscreen
Retaining clips
Trim panels

Release screw (1) on A-pillar.

Tightening torque 72 12 2AZ .

Release retaining screws (2).

Tightening torque 72 12 5AZ .

Remove deformation plate (3).

Fig 2: Identifying A-Pillar, Retaining Screw And Deformation Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 12 2AZ .

Installation:

Folding pack is under tab washer.

Fig 3: Identifying Folding Pack Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 72 12 2AZ .

Fig 4: Identifying Airbag Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

UNLOCK AND DISCONNECT plug (3) for gas generator (2).

Release screws (1).

Tightening torque 72 12 04AZ .

Remove gas generator (2) in direction of arrow.

Installation:

Gas generator is coded against incorrect installation.

Fig 5: Disconnecting Gas Generator Plug

Courtesy of BMW OF NORTH AMERICA, INC.
