54 10... Notes on cleaning the guide rail panorama glass roof in the removed state

Necessary preliminary tasks

• Remove COMPLETE PANORAMA GLASS ROOF .
• Remove GLASS SLIDE/TILT SUNROOF COVER AT FRONT .
• Remove GLASS SLIDE/TILT SUNROOF COVER AT REAR .
• Remove FRONT WATER GUTTER .
• Remove DRIVE WITH GEARBOX AT FRONT .
• Remove MECHANISM OF GLASS SLIDE/TILT SUNROOF COVER AT FRONT .
• Only E91:  Remove REAR CROSS MEMBER .

To clean the guide rails, use cleaning kit with part number 54 10 7 306 684  .

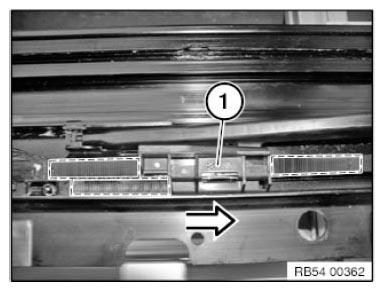

Use cleaning cloth to clean sliding surfaces and springs of wind deflector control carriage (1).

Afterwards reapply GREASE  to springs and sliding surfaces.

Fig 1: Sliding Surfaces And Springs Of Wind Deflector Control Carriage

Courtesy of BMW OF NORTH AMERICA, INC.

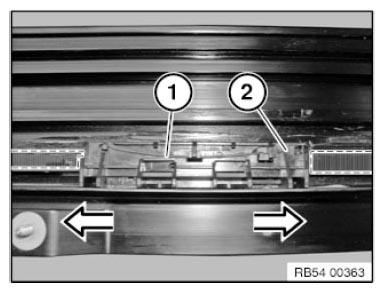

Unhook clasp (1) from spring carriage (2).

Slide spring carriage (2) forward.

Clean sliding surfaces with cleaning cloth.

Reapply GREASE  to sliding surfaces.

Installation note:

Slide spring carriage (2) back until it engages.

Fig 2: Sliding Spring Carriage Back And Forward

Courtesy of BMW OF NORTH AMERICA, INC.

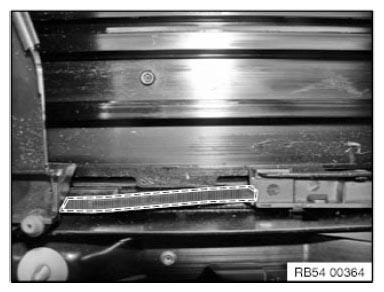

Clean rear bottom gate with the cleaning cloth in the marked area and then reapply GREASE .

Fig 3: Identifying Rear Bottom Gate Grease Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

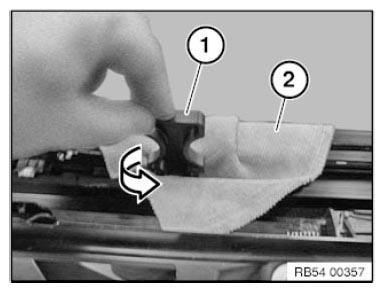

Insert cleaning cloth (2) in guide rail as illustrated.

Place cleaning tool (1) on cloth (2) and screw-in in direction of arrow.

Fig 4: Inserting Cleaning Cloth In Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

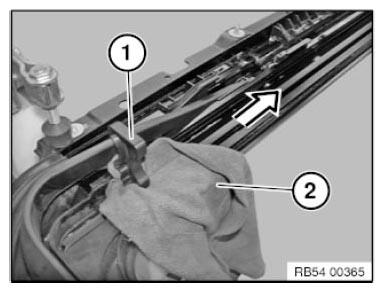

Pull cleaning kit (1) and (2) from front to rear through guide rail.

Remove dirt contamination from end of guide rail.

Reapply GREASE  to guide rail.

Fig 5: Removing Dirt Contamination From End Of Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

INITIALIZE  panorama glass roof.
